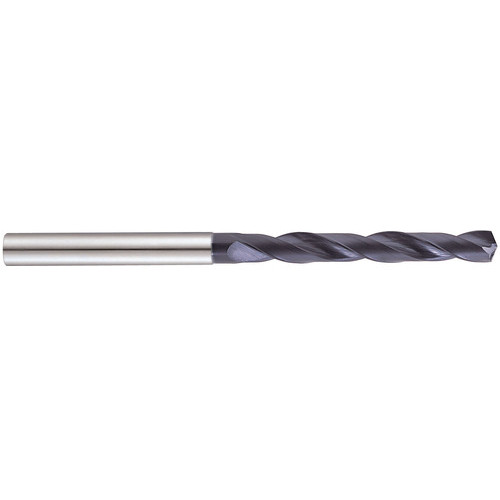

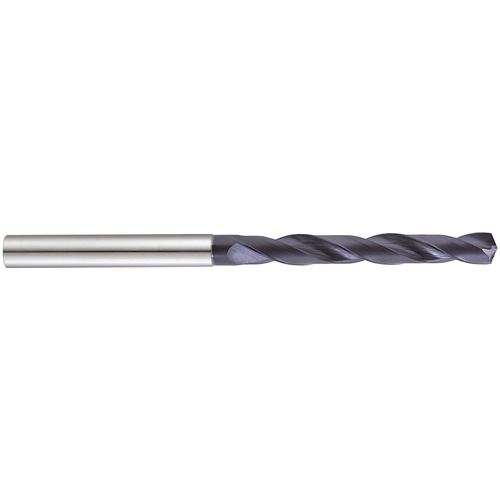

SC Drill; 13/32″ Dia. × 27/64″ Shank Dia. × 5-7/8″ OAL × 3-5/16″ LCF ; 140 Degrees ; 5xD ; TiAlN ; Series DH418
SC Drill; 13/32″ Dia. × 27/64″ Shank Dia. × 5-7/8″ OAL × 3-5/16″ LCF ; 140 Degrees ; 5xD ; TiAlN ; Series DH418
| Drill Bit Size / Cutting Diameter (DC) | 13/32″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 13/32″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4062″ | Tool Type | Carbide Dream Drill w/Coolant - 5xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.317 mm | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | DH418 |
| Coating | TiAlN | Usable Length (LU) | 3-5/16″ |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 3-5/16″ |
| Connection Diameter Machine Side (DCONMS) | 27/64″ | Overall Length (OAL) | 5-7/8″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0739″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
