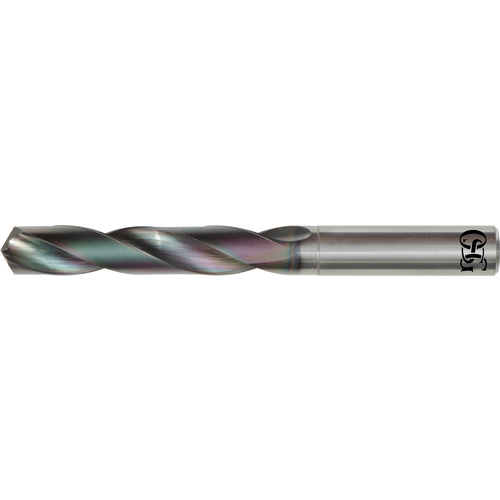

4.9 mm Dia. × 6 mm Shank × 44 mm Flute Length × 82 mm OAL, 4xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 4.9 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 44 mm LCF ; 140 Degrees ; 4xD ; EgiAs ; Series 6310
| Drill Bit Size / Cutting Diameter (DC) | 4.9 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.9 mm | Tool Type | Jobber Drill |
| Length Group | 4xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6310 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 44 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 44 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 82 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 44 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.35000
Package Width
.45000
Package Height
.35000
Package Weight
0.05
