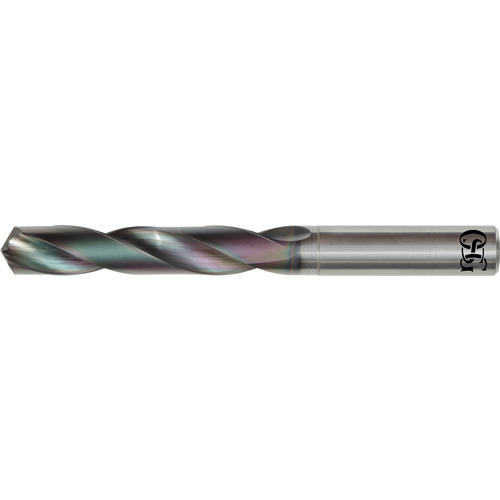

4.6 mm Dia. × 6 mm Shank × 36 mm Flute Length × 74 mm OAL, 4xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 4.6 mm Dia. × 6 mm Shank Dia. × 74 mm OAL × 36 mm LCF ; 140 Degrees ; 4xD ; EgiAs ; Series 6310
| Drill Bit Size / Cutting Diameter (DC) | 4.6 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.6 mm | Tool Type | Jobber Drill |
| Length Group | 4xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6310 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 36 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 74 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 36 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.045
