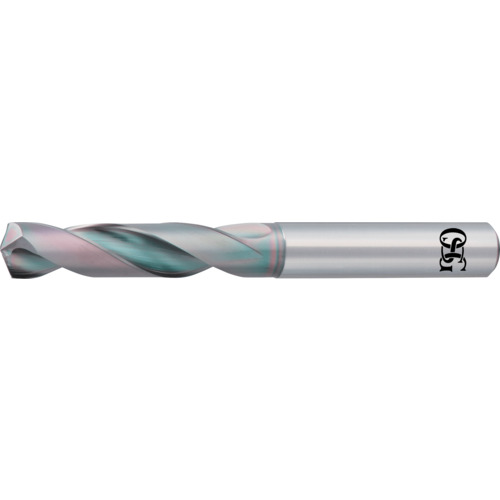

10.8 mm Dia. × 12 mm Shank × 55 mm Flute Length × 102 mm OAL, 2xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 10.8 mm Dia. × 12 mm Shank Dia. × 102 mm OAL × 55 mm LCF ; 140 Degrees ; 2xD ; EgiAs ; Series 6300
| Drill Bit Size / Cutting Diameter (DC) | 10.8 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.8 mm | Tool Type | Stub Drill |
| Length Group | 2xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6300 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Chip Flute (LCF) | 55 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 102 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 55 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
