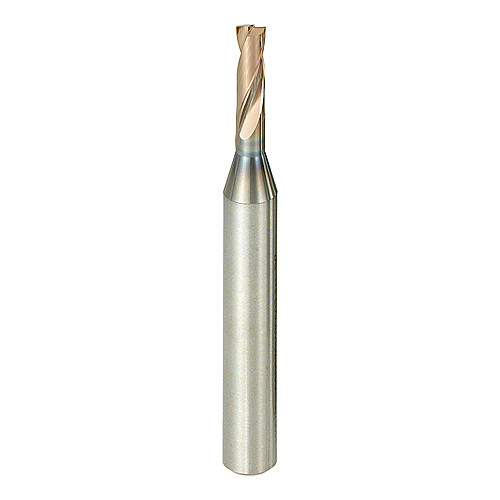

MFE0794X02S080 DP1020
SC Drill; 5/16″ Dia. × 0.315″ Shank Dia. × 2.917″ OAL × 1.264″ LCF ; 180 Degrees ; 2xD ; Series MFE_INCH
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Grade | DP1020 |
| Decimal Equivalent | 0.3125″ | Measurement Type | Inch |
| Length Group | 2xD | Series/List # | MFE_INCH |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Length Chip Flute (LCF) | 1.264″ |
| Head Length (LH) | 1.382″ | Overall Length (OAL) | 2.917″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 180 Degrees | Feature | High efficiency drilling in various types of machining. |
| Flute Helix Angle (FHA) | 20 Degrees |
Product Features
| Country of Origin | Japan |
