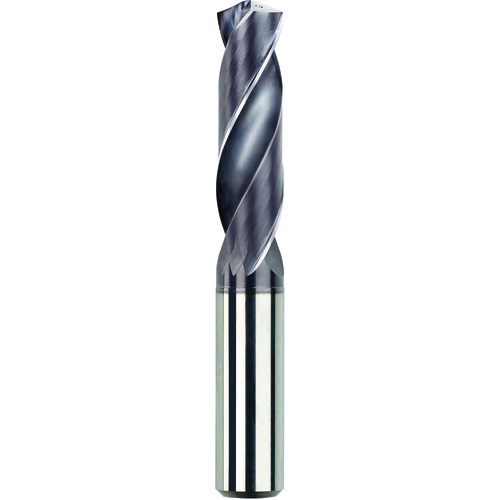

6 mm Dia. × 6 mm Shank × 28 mm Flute Length × 66 mm OAL, 3xD, 140Deg, TiAlN, 2 Flute, Coolant Thru, Round Solid Carbide Drill Series/List #5601
| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.2362″ | Point Shape | Self Centering |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Measurement Type | Metric |
| Length Group | 3xD | Series/List # | 5601 |
| Coating | TiAlN | Usable Length (LU) | 28 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 66 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.06
