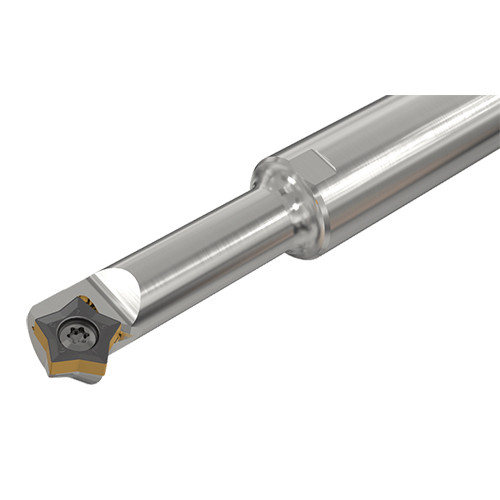

CH45-19-80-3-C16-PN06

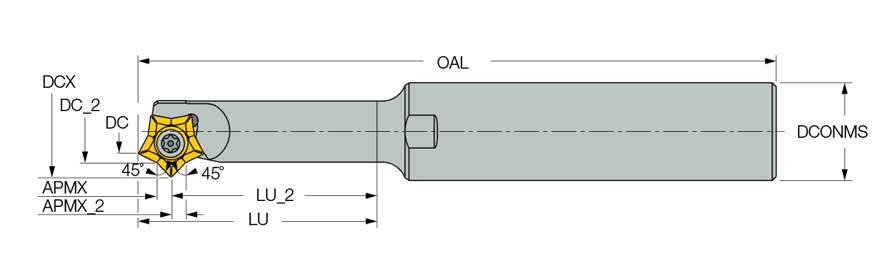

Indexable End Mill; 18.7 mm Dia. × 1.5 mm LOC × 16 mm Shank Dia. × 130 mm OAL × 29.4 mm LU ; Round Shank ; 45 Degrees
| Cutting Diameter (DC/DCX) | 18.7 mm | Weight of Item (WT) | 0.16 kg |
| Cutting Diameter (DC) | 13.4 mm | Usable Length (LU) | 29.4 mm |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 1.5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 130 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Measurement Type | Metric |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 18.7 mm |
| Master Insert Identification (MIID) | PNMT 0602 |
Product Features
| Family Description | Upper and bottom chamfering endmills carrying pentagonal inserts with 5 front and 5 back cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.472
