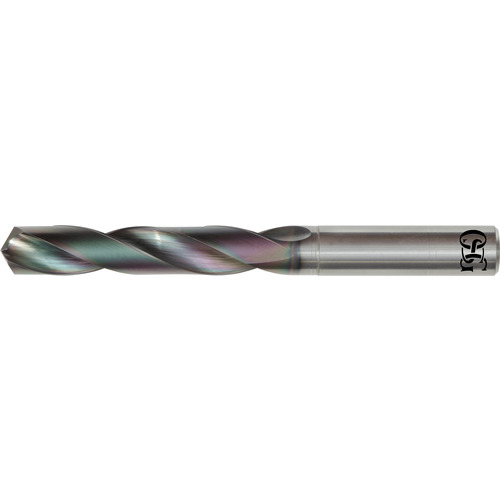

9/16″ Dia. × 5/8″ Shank × 83 mm Flute Length × 133 mm OAL, 4xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 9/16″ Dia. × 5/8″ Shank Dia. × 133 mm OAL × 83 mm LCF ; 140 Degrees ; 4xD ; EgiAs ; Series 6310
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ | Tool Type | Jobber Drill |
| Decimal Equivalent | 0.5625″ | Measurement Type | Inch |
| Length Group | 4xD | Series/List # | 6310 |
| Coating | EgiAs | Usable Length (LU) | 83 mm |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 83 mm |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Overall Length (OAL) | 133 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 83 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
5.55000
Package Width
.75000
Package Height
.85000
Package Weight
0.525
