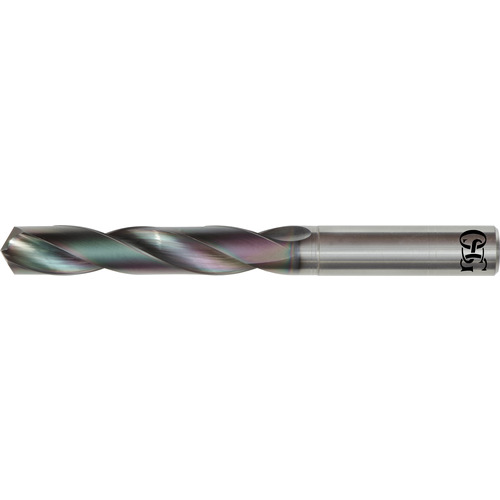

25/64″ Dia. × 7/16″ Shank × 61 mm Flute Length × 103 mm OAL, 4xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 25/64″ Dia. × 7/16″ Shank Dia. × 103 mm OAL × 61 mm LCF ; 140 Degrees ; 4xD ; EgiAs ; Series 6310
| Drill Bit Size / Cutting Diameter (DC) | 25/64″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 25/64″ | Tool Type | Jobber Drill |
| Decimal Equivalent | 0.3906″ | Measurement Type | Inch |
| Length Group | 4xD | Series/List # | 6310 |
| Coating | EgiAs | Usable Length (LU) | 61 mm |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Overall Length (OAL) | 103 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 61 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.20000
Package Width
.65000
Package Height
.60000
Package Weight
0.22
