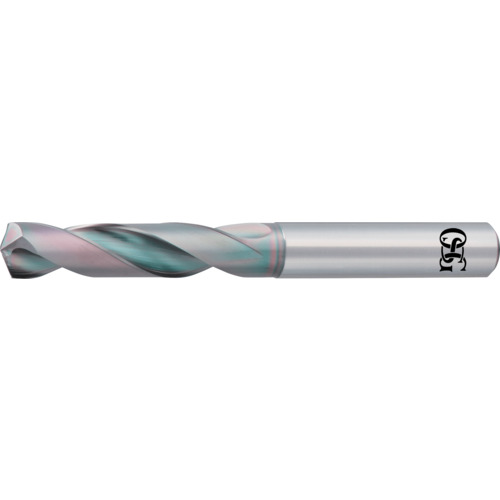

15/32″ Dia. × 1/2″ Shank × 55 mm Flute Length × 102 mm OAL, 2xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; 15/32″ Dia. × 1/2″ Shank Dia. × 102 mm OAL × 55 mm LCF ; 140 Degrees ; 2xD ; EgiAs ; Series 6300
| Drill Bit Size / Cutting Diameter (DC) | 15/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/32″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.4688″ | Measurement Type | Inch |
| Length Group | 2xD | Series/List # | 6300 |
| Coating | EgiAs | Usable Length (LU) | 55 mm |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Overall Length (OAL) | 102 mm |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 55 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.30000
Package Width
.75000
Package Height
.85000
Package Weight
0.425
