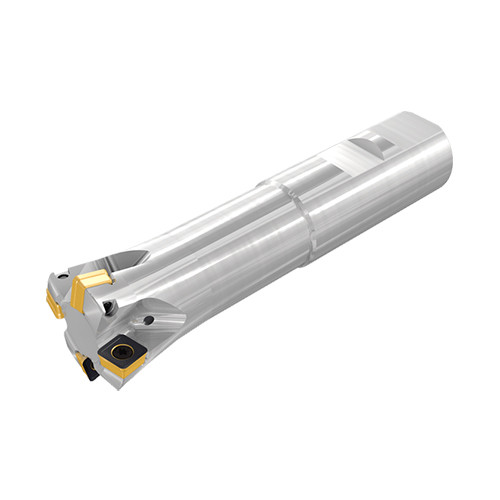

FFQ4 D0.87-2-1.7-W0.75-09

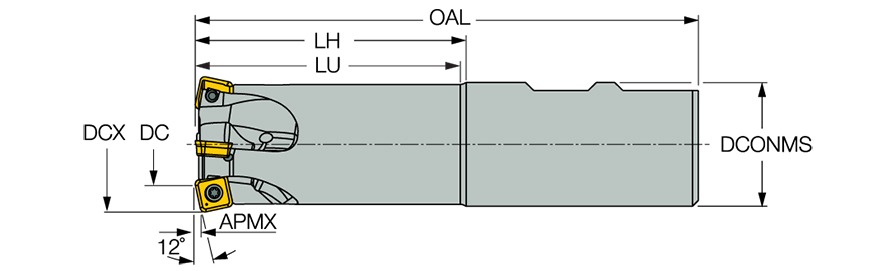

Indexable End Mill; 7/8″ Dia. × 0.047″ LOC × 3/4″ Shank Dia. × 3.8″ OAL × 1.66″ LU ; Weldon Shank ; 12 Degrees
| Cutting Diameter (DC/DCX) | 7/8″ | Head Length (LH) | 1-3/4″ |
| Cutting Diameter (DC) | 0.311″ | Usable Length (LU) | 1.66″ |
| Cutting Item Count (CICT) | 2 | Torque (TQ) | 17.7 lbfxin |
| Depth of Cut Maximum (APMX) | 0.047″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3.8″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 8 Degrees | Measurement Type | Inch |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T | Cutting Diameter Maximum (DCX) | 7/8″ |
| Weight of Item (WT) | 0.39 lbs |
Product Features
| Family Description | Fast feed endmills carrying single-sided Inserts with 4 cutting edges | Country of Origin | Israel |

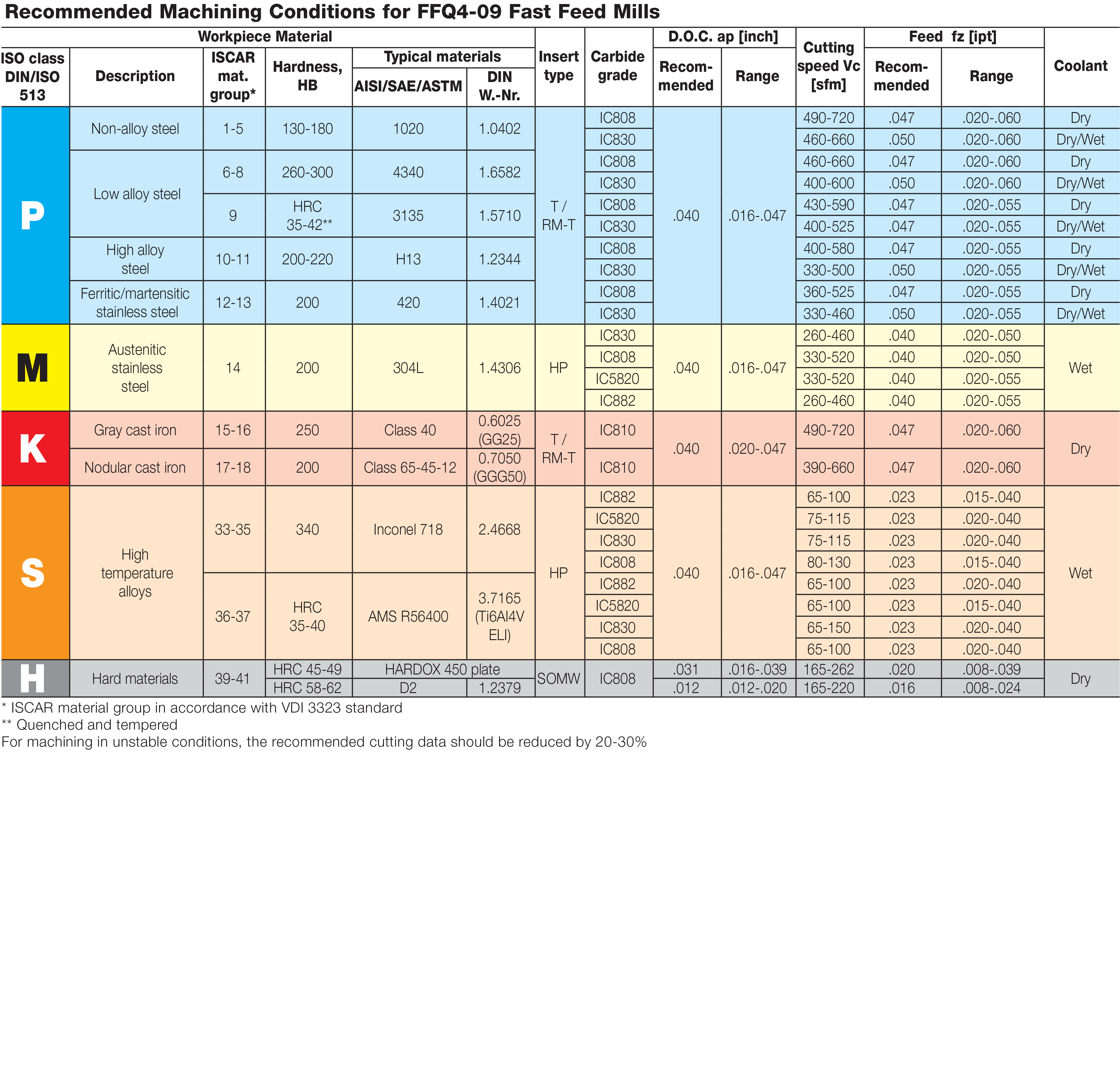

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .094, for insert SOMW .118 When mounting insert SOMW, APMX=.039 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
0.536
