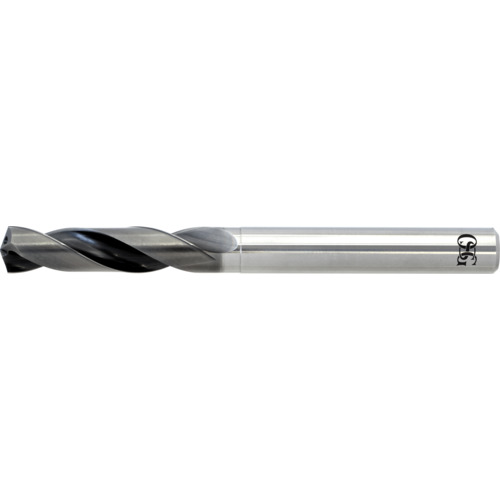

15/32 EXOCARB WDO-SUS-3D
SC Drill; 15/32″ Dia. × 1/2″ Shank Dia. × 120 mm OAL × 60 mm LCF ; 140 Degrees ; 3xD ; AlTiCrN ; Series 5200
| Drill Bit Size / Cutting Diameter (DC) | 15/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/32″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.4688″ | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | 5200 |
| Coating | AlTiCrN | Usable Length (LU) | 60 mm |
| Applicable Material | | Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Overall Length (OAL) | 120 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 60 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.90000
Package Width
.70000
Package Height
.60000
Package Weight
0.31
