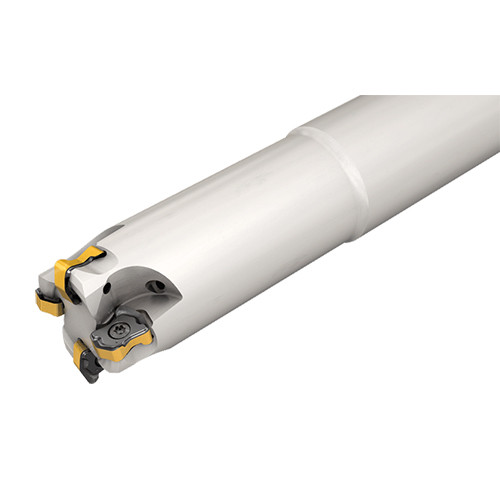

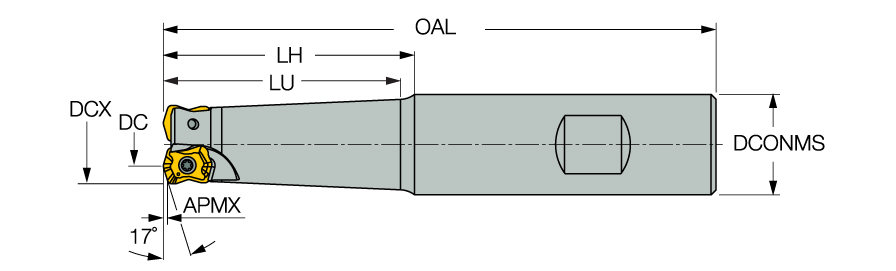

FFX4 ED0.62-2-2.0W0.75-04
Indexable End Mill; 5/8″ Dia. × 0.031″ LOC × 3/4″ Shank Dia. × 4-1/4″ OAL × 1.89″ LU ; Weldon Shank ; 17 Degrees
| Cutting Diameter (DC/DCX) | 5/8″ | Weight of Item (WT) | 0.39 lbs |
| Cutting Diameter (DC) | 0.334″ | Head Length (LH) | 2″ |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 3.234″ |
| Depth of Cut Maximum (APMX) | 0.031″ | Usable Length (LU) | 1.89″ |
| Overall Length (OAL) | 4-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 4.3 Degrees | Measurement Type | Inch |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | FFX4 XNMU 040310T | Cutting Diameter Maximum (DCX) | 5/8″ |
Product Features
| Family Description | Endmills carrying small double-sided "bone shaped" inserts with 4 cutting edges for fast feed milling. Used for small size pockets milling | Country of Origin | Israel |
| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Programming radius for inserts XNMU/XNMW: .066 |
Shipping Info
Package Weight
0.507
