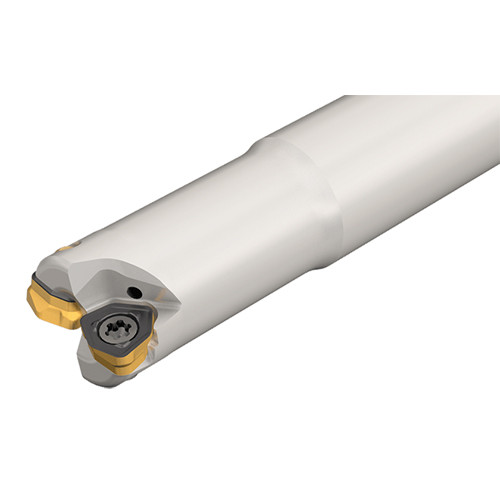

FFT3 EFM D10-2-080-C10-03
Indexable End Mill; 10 mm Dia. × 0.6 mm LOC × 10 mm Shank Dia. × 80 mm OAL × 18 mm LU ; Round Shank ; 17 Degrees

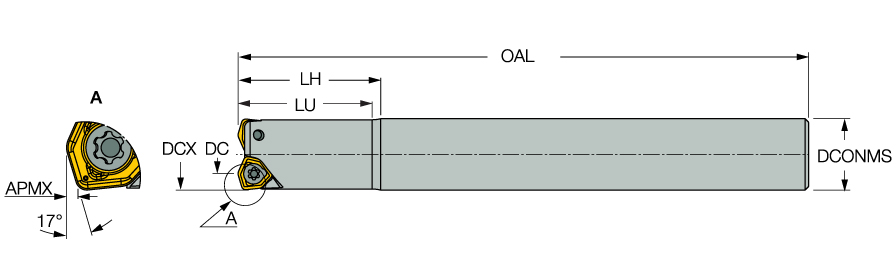

| Cutting Diameter (DC/DCX) | 10 mm | Head Length (LH) | 20 mm |
| Cutting Diameter (DC) | 5.6 mm | Functional Length (LF) | 80 mm |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 18 mm |
| Depth of Cut Maximum (APMX) | 0.6 mm | Torque (TQ) | 0.5 Nxm |
| Overall Length (OAL) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 6.9 Degrees | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | FFT3 WXMT 030206T | Cutting Diameter Maximum (DCX) | 10 mm |
| Weight of Item (WT) | 0.11 Kg |
Product Features
| Family Description | Endmills carrying single-sided small trigon inserts for fast feed milling | Country of Origin | Israel |

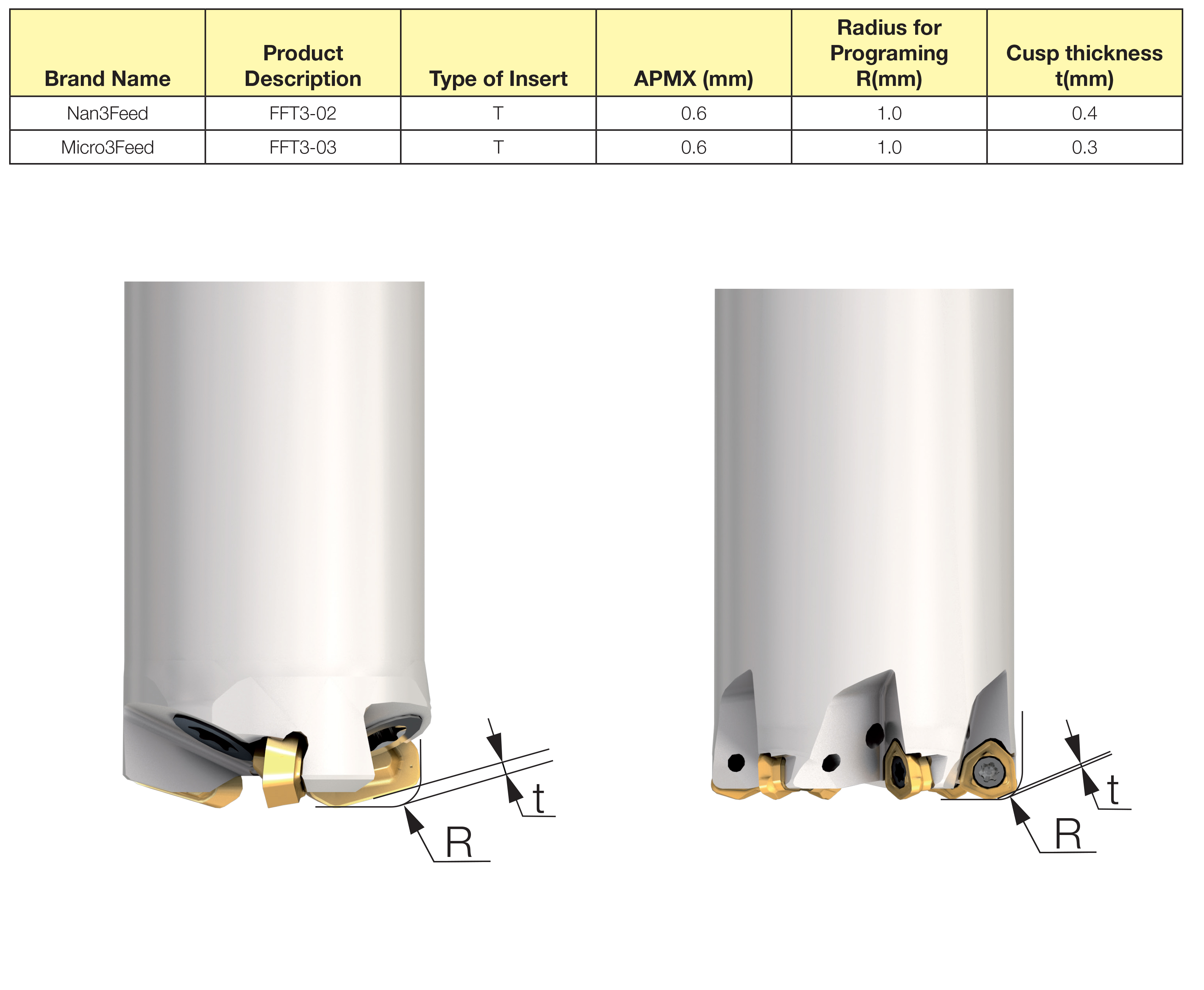

| Remarks | Radius for programming 1.0 mm To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
2.965
