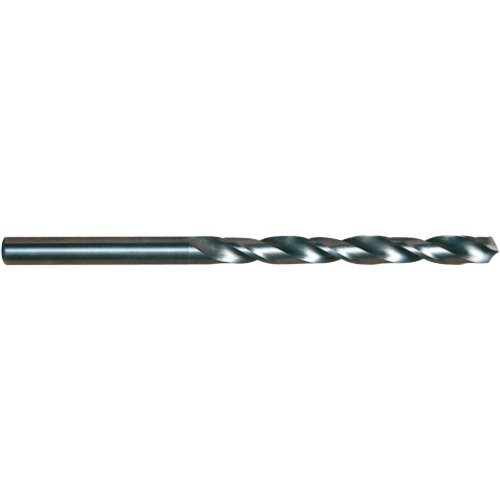

27/64 CBD JL TWIST DRILL
SC Drill; 27/64″ Dia. × 27/64″ Shank Dia. × 4-1/2″ OAL × 2-7/8″ LCF ; 118 Degrees ; Jobber ; Uncoated ; Series D5417
| Drill Bit Size / Cutting Diameter (DC) | 27/64″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 27/64″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4219″ | Tool Type | Jobber Length Twist Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.716 mm | Measurement Type | Inch |
| Length Group | Jobber | Series/List # | D5417 |
| Coating | Uncoated | Usable Length (LU) | 2-7/8″ |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 2-7/8″ |
| Connection Diameter Machine Side (DCONMS) | 27/64″ | Overall Length (OAL) | 4-1/2″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.1267″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.125
Package Width
0.625
Package Height
0.625
Package Weight
0.245
