MEC 0750S7505211T 0.7500

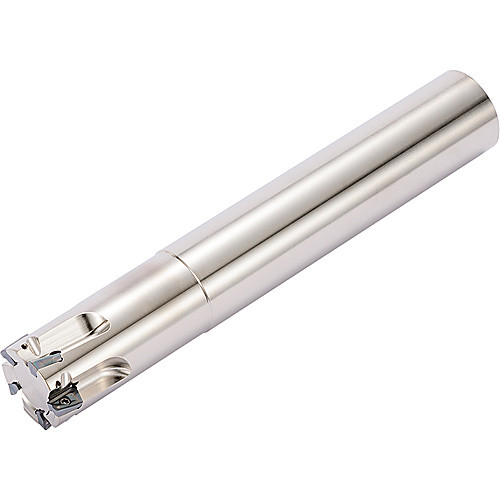

Indexable End Mill; 3/4″ Dia. × 3/4″ Shank Dia. × 5.2″ OAL × 2/5″ LU ; 2 FL ; Round Shank Series/List # MEC
| Cutting Diameter (DC/DCX) | 3/4″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 3/4″ | Usable Length (LU) | 0.4″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 5.2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Style | MEC |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Series/List # | MEC |
| Master Insert Identification (MIID) | BDMT11T302ER-JT | BDMT11T304ER-JT | BDMT11T308ER-JT | BDMT11T312ER-JT | BDMT11T316ER-JT | BDMT11T320ER-JT | BDMT11T324ER-JT | BDMT11T331ER-JT | BDMT11T302ER-JS | BDMT11T304ER-JS | BDMT11T308ER-JS | BDGT11T302FR-JA | BDGT11T304FR-JA | BDGT11T308FR-JA | BDMT11T302FR | BDMT11T304FR | Measurement Type | Inch |
| Head Length (LH) | 2.3622″ |
Product Features
| Family Description | Alternate Manufacture # MEC0750S7505211T | Country of Origin | Japan |
