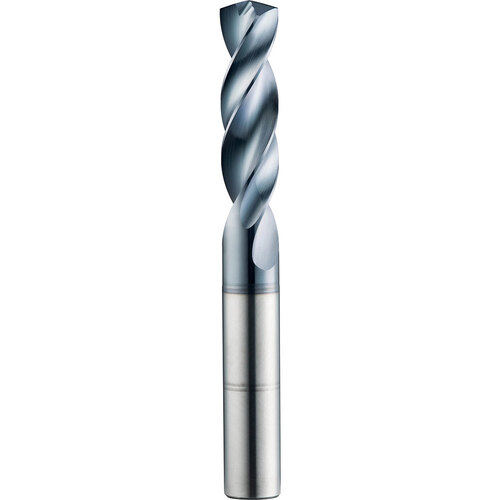

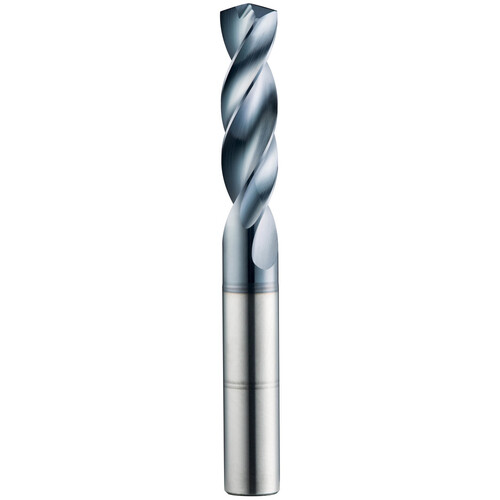

39/64″ Dia. × 5/8″ Shank × 2-1/2″ Flute Length × 4-9/16″ OAL, 3xD, 145°, TA, 2 Flute, External, Round Solid Carbide Drill
SC Drill; 39/64″ Dia. × 5/8″ Shank Dia. × 4-9/16″ OAL × 2-1/2″ LCF ; 145 Degrees ; 3xD ; Spiral Flute ; AlTiN ; Series 135
| Drill Bit Size / Cutting Diameter (DC) | 39/64″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 39/64″ | Length Below Shank | 1.8906″ |
| Decimal Equivalent | 0.6094″ | Flute Type | Spiral |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | AlTiN | Series/List # | 135 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 2″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 2-1/2″ |
| Point Angle (SIG) | 145 Degrees | Overall Length (OAL) | 4-9/16″ |
| Flute Helix Angle (FHA) | 32 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.53
