MEC1500S1259517 1.5000 EM

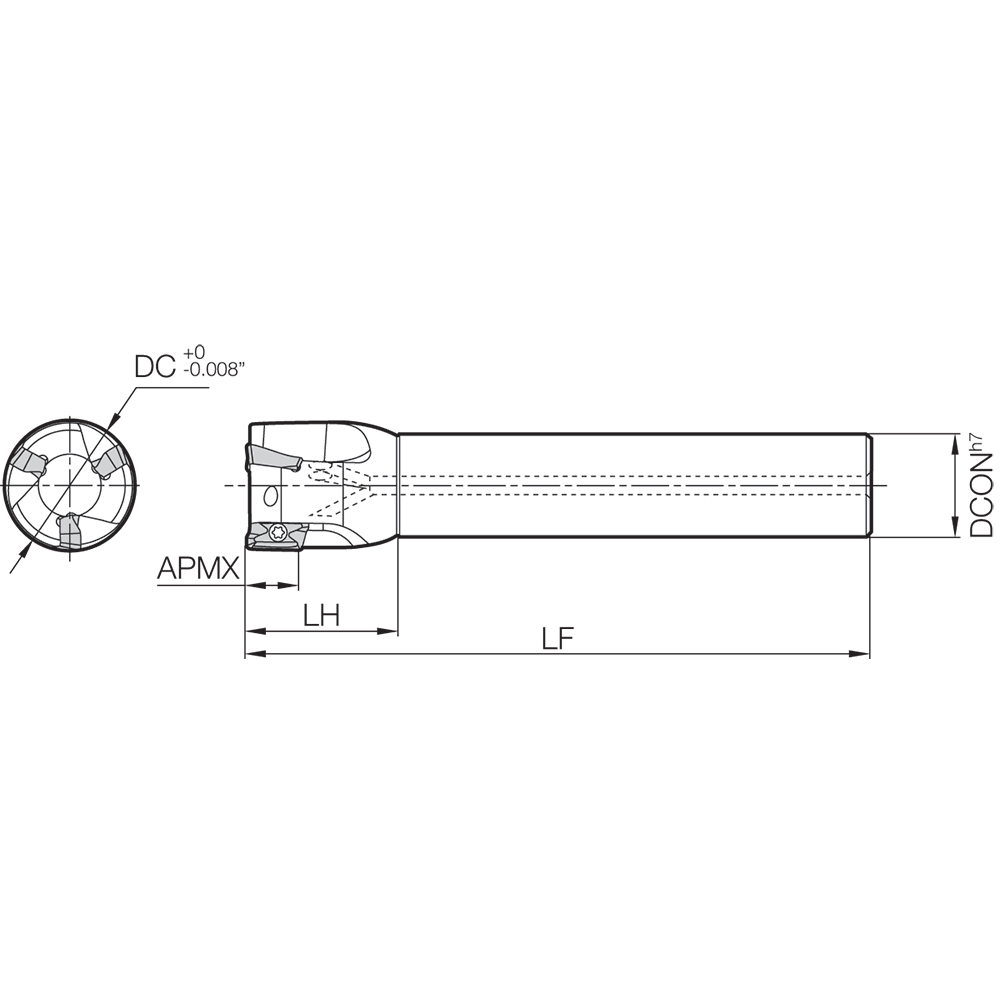

Indexable End Mill; 1-1/2″ Dia. × 1-1/4″ Shank Dia. × 9.45″ OAL × 0.618″ LU ; 2 FL ; Round Shank ; Series MEC
| Cutting Diameter (DC/DCX) | 1-1/2″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 1-1/2″ | Usable Length (LU) | 0.618″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 9.45″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Style | MEC |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | MEC |
| Master Insert Identification (MIID) | BDMT170404ER-JT | BDMT170408ER-JT | BDMT170412ER-JT | BDMT170416ER-JT | BDMT170420ER-JT | BDMT170424ER-JT | BDMT170431ER-JT | BDMT170440ER-JT | BDMT170404ER-JS | BDMT170408ER-JS | BDGT170404FR-JA | BDGT170408FR-JA | BDGT170420FR-JA | BDGT170431FR-JA | BDMT170402FR | BDMT170404FR | Measurement Type | Inch |
| Head Length (LH) | 2.5591″ |
Product Features
| Family Description | Alternate Manufacture # MEC1500S1259517 | Country of Origin | Japan |
Shipping Info
Package Weight
1.6700
