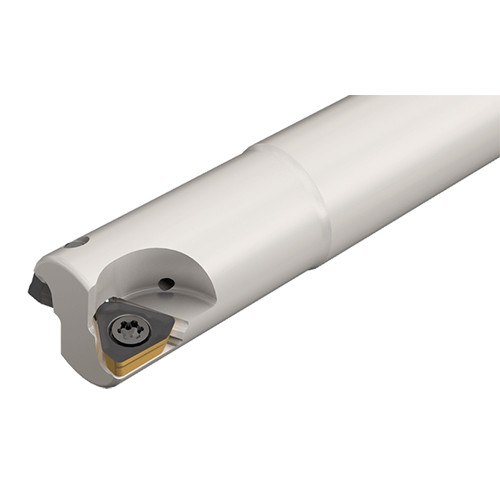

HM390 ETP D16-4-C16-05-C
Indexable End Mill; 16 mm Dia. × 3.5 mm LOC × 16 mm Shank Dia. × 90 mm OAL ; 4 FL ; Round Shank ; 90 Degrees

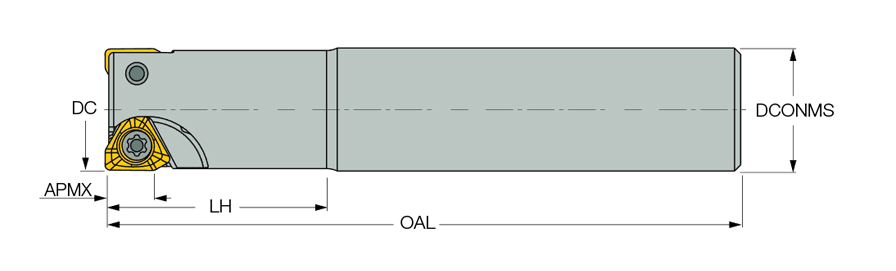

| Cutting Diameter (DC/DCX) | 16 mm | Head Length (LH) | 20 mm |
| Cutting Diameter (DC) | 16 mm | Functional Length (LF) | 90 mm |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 3.5 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 90 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TPKT 0502PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.12 Kg | Cutting Diameter Maximum (DCX) | 16 mm |
Product Features
| Family Description | 90° endmills carrying HM390 TPKT 0502 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.375
