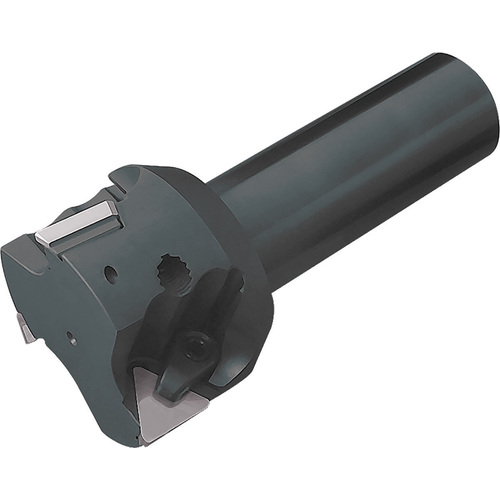

MTP 9010075W 1.0000 EM

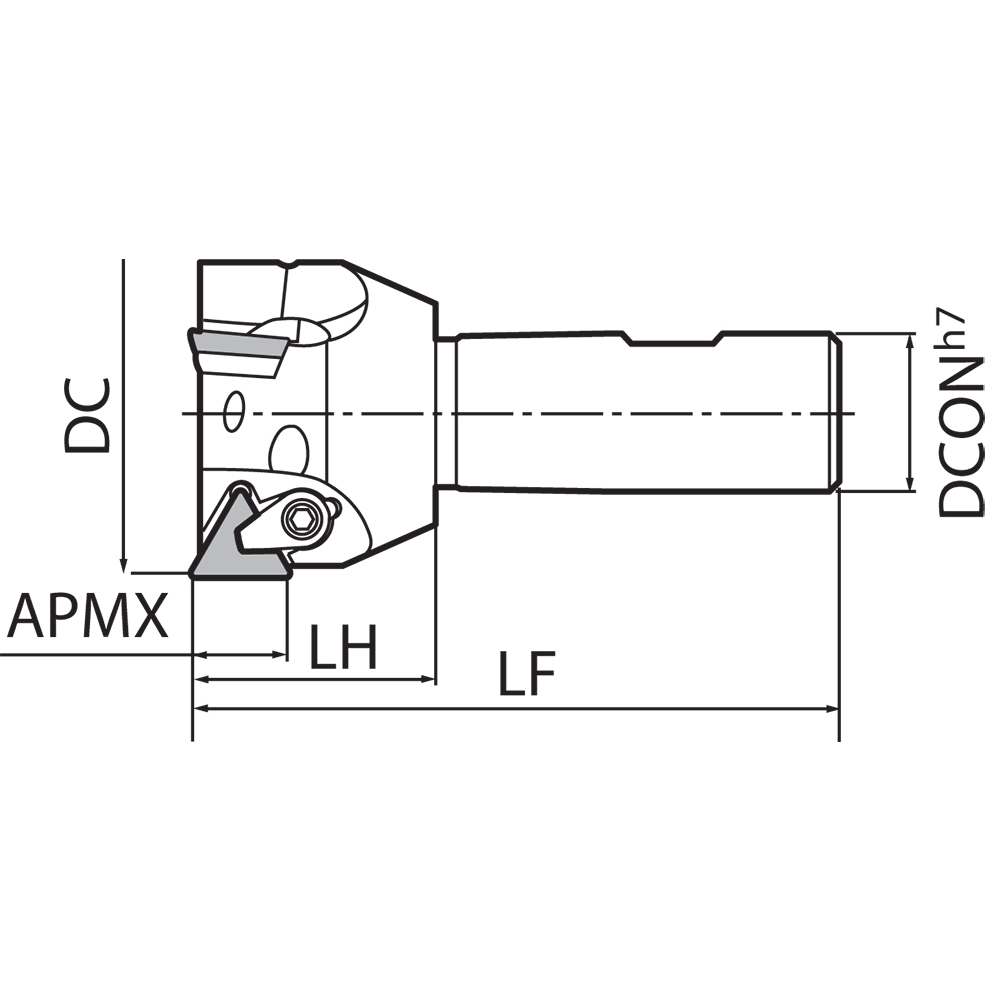

Indexable End Mill; 1-1/4″ Dia. × 3/4″ Shank Dia. × 3.28″ OAL × 0.53″ LU ; 2 FL ; Weldon Shank ; Series MTP
| Cutting Diameter (DC/DCX) | 1-1/4″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 1-1/4″ | Usable Length (LU) | 0.53″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 3.28″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Style | MTP |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Angle | 90 Degrees |
| Master Insert Identification (MIID) | TPMR32PDER-H | TPKN32PDTR | TPKN32PDFR | TPG321 | TPG322 | TPG323 | TPM321 | TPM322 | TPM323 | Series/List # | MTP |
| Head Length (LH) | 1-1/4″ | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # MTP9012575W | Country of Origin | USA |
Shipping Info
Package Weight
0.65
