FM 15006RH 1.5000 EM

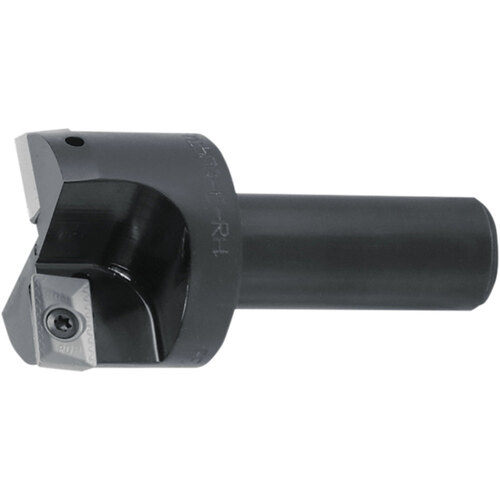

Indexable End Mill; 1-1/2″ Dia. × 3/4″ Shank Dia. × 3.05″ OAL × 0.31″ LU ; 2 FL ; Weldon Shank ; Series FM
| Cutting Diameter (DC/DCX) | 1-1/2″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 1-1/2″ | Usable Length (LU) | 0.31″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 3.05″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Style | FM |
| Application | Facing | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Angle | 6 Degrees |
| Master Insert Identification (MIID) | XPMT15T304 | XPMT15T308 | XPMT15T316 | XPMT15T324 | XPMT15T331 | XPMT15T364 | Series/List # | FM |
| Head Length (LH) | 1.15″ | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # FM15006RH | Country of Origin | USA |
Shipping Info
Package Weight
.6500
