15002000LE 1.5000 EM

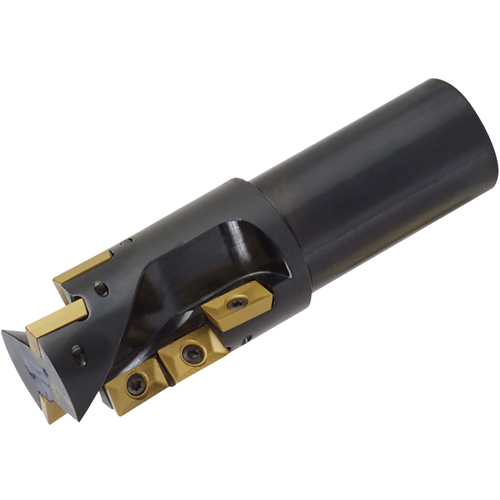

Indexable End Mill; 1-1/2″ Dia. × 1-1/4″ Shank Dia. × 4.91″ OAL × 2″ LU ; 2 FL ; Weldon Shank ; Series EM-LE

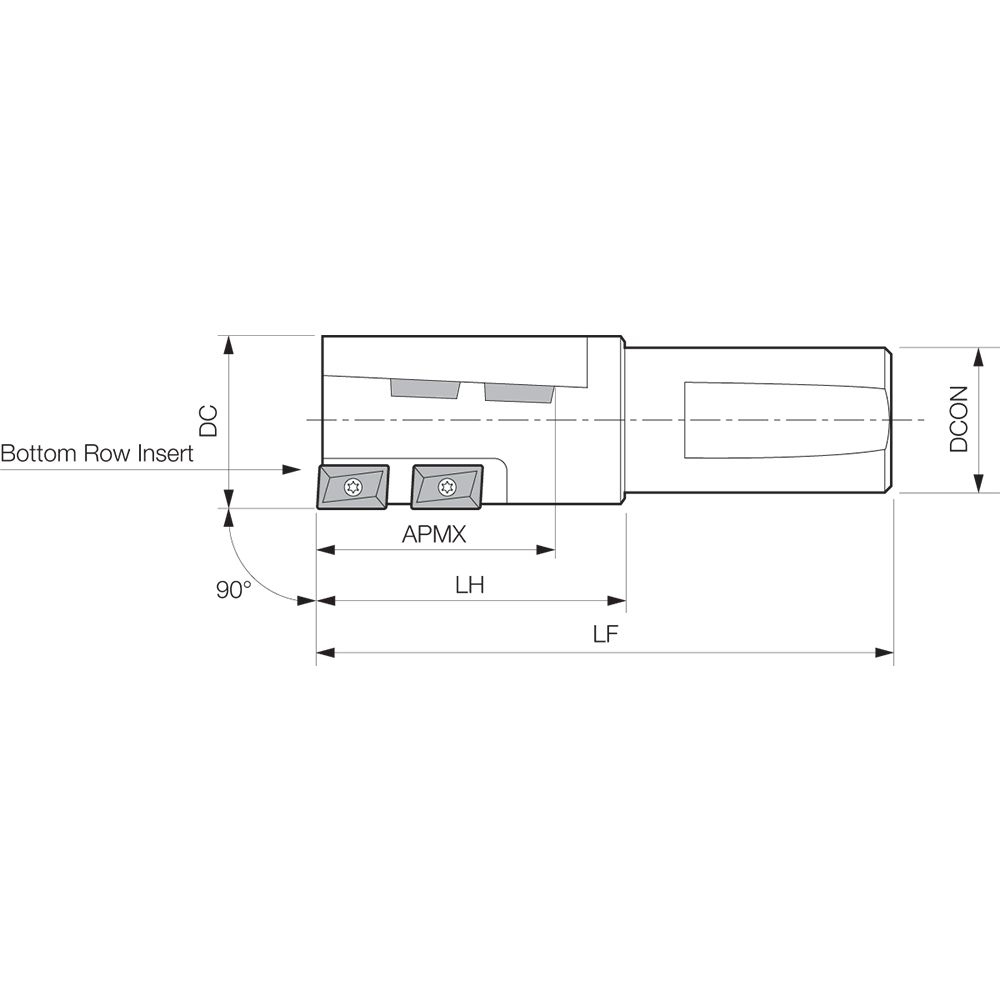

| Cutting Diameter (DC/DCX) | 1-1/2″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 1-1/2″ | Usable Length (LU) | 2″ |
| Cutting Item Count (CICT) | 8 | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 4.91″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Style | EM |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Angle | 90 Degrees |
| Master Insert Identification (MIID) | [Bottom Insert - XPMT15T304 | XPMT15T308 | XPMT15T316 | XPMT15T324 | XPMT15T331 | XPMT15T364] | [Side Row - XPMT15T308] | Series/List # | EM-LE |
| Head Length (LH) | 2.63″ | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # EM15002000LE | Country of Origin | USA |
Shipping Info
Package Weight
1.7000
