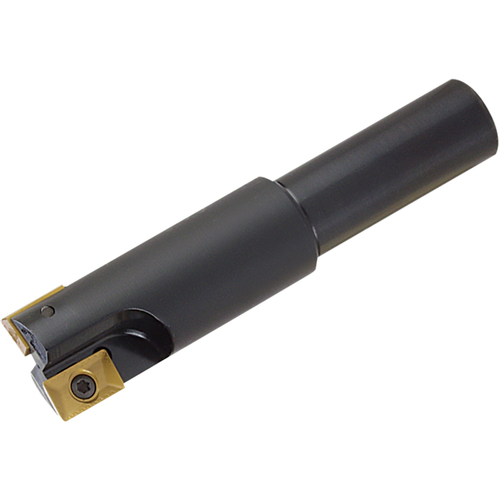

125025 1.2500 EM
Indexable End Mill; 1-1/4″ Dia. × 1″ Shank Dia. × 4.78″ OAL × 0.6″ LU ; 2 FL ; Weldon Shank ; Series EM
| Cutting Diameter (DC/DCX) | 1-1/4″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 1-1/4″ | Usable Length (LU) | 0.6″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 4.78″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Style | EM |
| Ramping Angle Maximum (RMPX) | 8 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Series/List # | EM |
| Master Insert Identification (MIID) | XPMT15T304 | XPMT15T308 | XPMT15T316 | XPMT15T324 | XPMT15T331 | XPMT15T364 | Measurement Type | Inch |
| Head Length (LH) | 2-1/2″ |
Product Features
| Family Description | Alternate Manufacture # EM125025 | Country of Origin | USA |
Shipping Info
Package Weight
1.7000
