HM390 ETP D10-3-MMT06-04
Indexable End Mill; 10 mm Dia. × 3 mm LOC × 9.6 mm Shank Dia. × 18.3 mm OAL ; 3 FL ; 90 Degrees

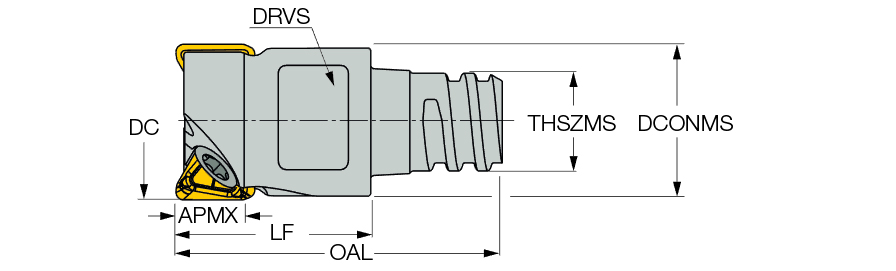

| Cutting Diameter (DC/DCX) | 10 mm | Functional Length (LF) | 12 mm |
| Cutting Diameter (DC) | 10 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 8 mm |
| Depth of Cut Maximum (APMX) | 3 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 18.3 mm | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 2.5 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | HM390 TPKR 0401 | Body Material | Steel |
| Weight of Item (WT) | 0 kg |
Product Features

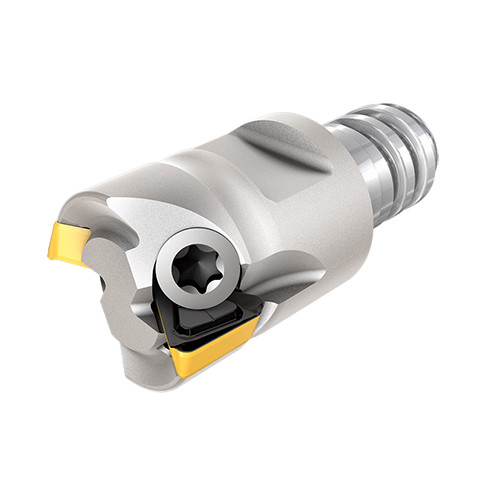

| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TPKR 0401... triangular inserts with helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert tightening torque 0.5 N*m |
Shipping Info
Package Weight
0.082
