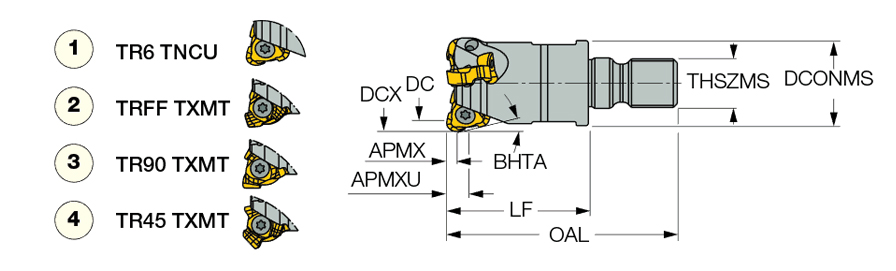

TR6 ER D25/0.98-3-M12-10
Indexable End Mill; 25 mm Dia. × 2.5 mm LOC × 21 mm Shank Dia. × 47 mm OAL
| Cutting Diameter (DC/DCX) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 20 mm | Drive Size (DRVS) | 19 mm |
| Cutting Item Count (CICT) | 3 | Body Half Taper Angle (BHTA) | 17 Degrees |
| Depth of Cut Maximum (APMX) | 2.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 47 mm | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 21 mm | Body Material | Steel |
| Master Insert Identification (MIID) | TR6 TNCU 100425 | Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.06 kg | Cutting Diameter Maximum (DCX) | 25 mm |
| Functional Length (LF) | 24.97 mm |
Product Features
| Family Description | Multifunction endmills with FLEXFIT threaded adaptation that carry four different insert geometries. | Country of Origin | Israel |

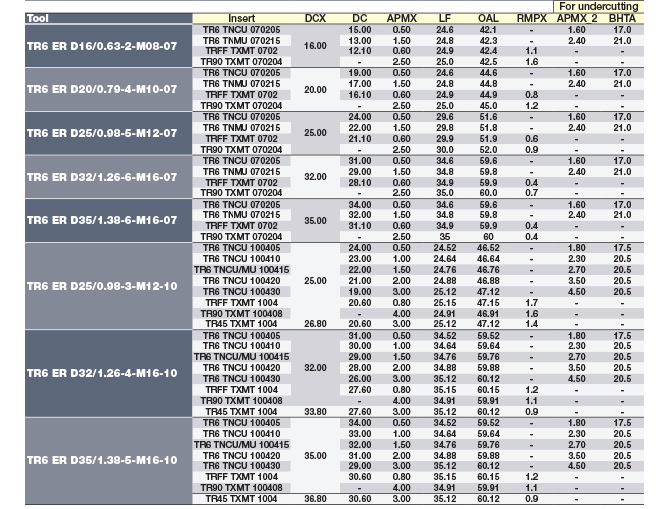

| Remarks | Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on "More Info" When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.275
