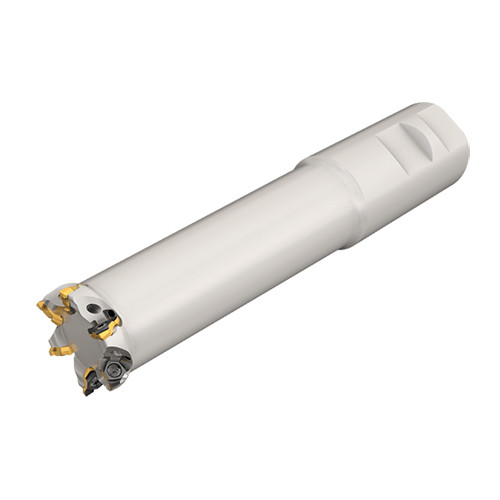

TR6 ERD1.25-6-4.0W1.25-07

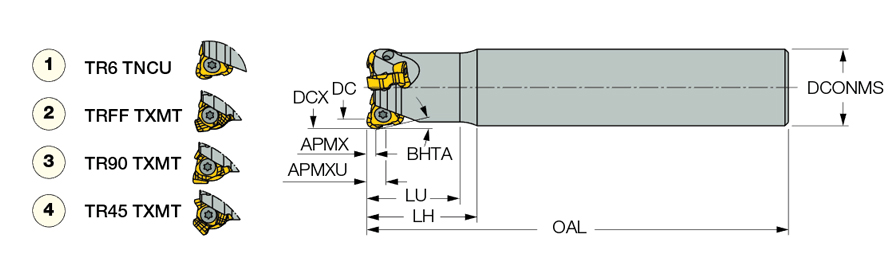

Indexable End Mill; 1-1/4″ Dia. × 0.039″ LOC × 1-1/4″ Shank Dia. × 6.28″ OAL × 3.83″ LU ; Weldon Shank
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 3.83″ |
| Cutting Diameter (DC) | 1.171″ | Functional Length (LF) | 5.139″ |
| Cutting Item Count (CICT) | 6 | Usable Length (LU) | 3.83″ |
| Depth of Cut Maximum (APMX) | 0.039″ | Body Half Taper Angle (BHTA) | 18 Degrees |
| Overall Length (OAL) | 6.28″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | TR6 TNCU 070210 | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.68 lbs | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | Multifunction endmills that carry four different insert geometries. | Country of Origin | Israel |

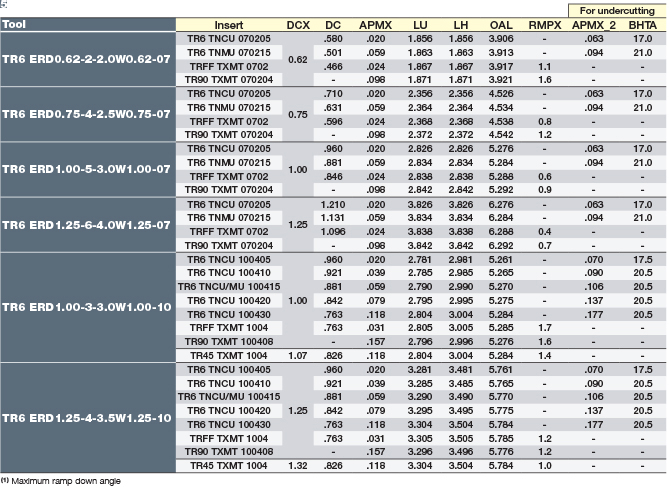

| Remarks | Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info |
