E90SO D.62-05-C.62-04-C

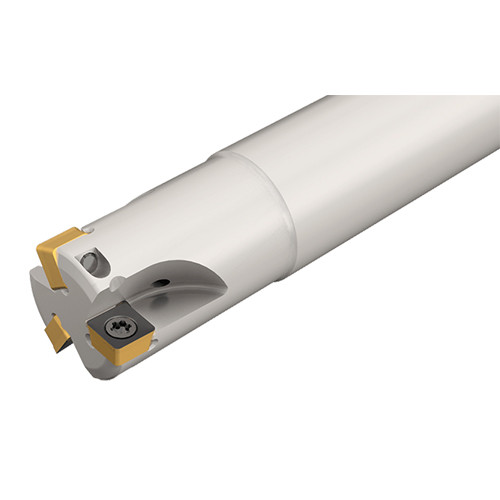

Indexable End Mill; 5/8″ Dia. × 0.138″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL × 1″ LU ; 5 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 5/8″ | Weight of Item (WT) | 0.13 lbs |
| Cutting Diameter (DC) | 5/8″ | Functional Length (LF) | 3-1/2″ |
| Cutting Item Count (CICT) | 5 | Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 0.138″ | Flute Count (NOF) | 5 |
| Overall Length (OAL) | 3-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Profiling | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Material | Steel |
| Master Insert Identification (MIID) | SOMT 040204 PNTR | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Endmills carrying 2 insert geometries, square inserts for 90° shouldering, square inserts for fast feed milling applications. | Country of Origin | Israel |

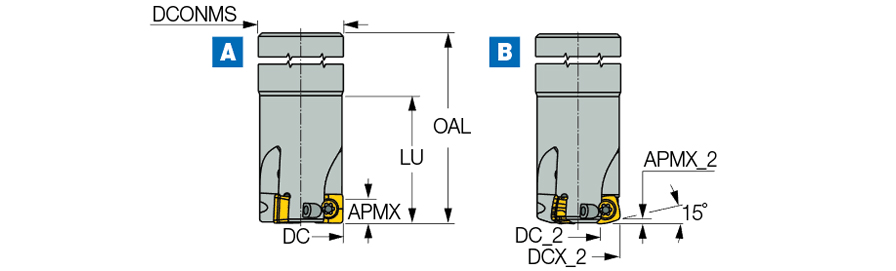

| Remarks | A - with SOMT/CT 0402 insert B - with SOMT 0402-FF insert Tightening torque 4.4 lbf*in |
Shipping Info
Package Weight
1.5
