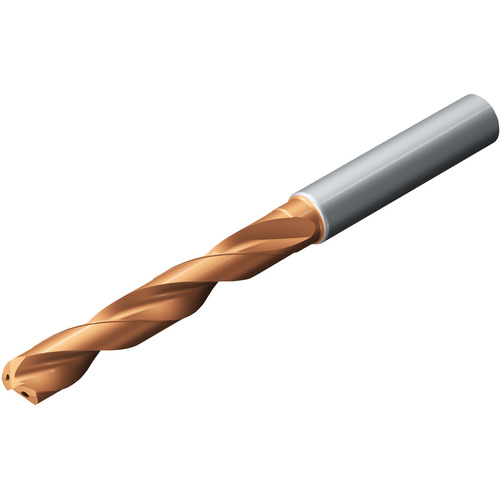

5.25 mm Dia. × 6 mm Shank × 44 mm Flute Length × 82 mm OAL, 5xD, 140°, TiAlN, 2xD Flute, Coolant Thru, DIN 6537 L, Round Solid Carbide Drill
Solid Carbide Drill; 5.25 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 44 mm LCF ; 140 Degrees ; 5xD ; 2 FL ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 5.25 mm | Shank Type | Round |
| Decimal Equivalent | 0.2067″ | Shank Standard | DIN 6537 L |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.25 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | Stainless Steel | Usable Length (LU) | 27.1 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 44 mm |
| Coolant Supply Property (CSP) | Internal | Overall Length (OAL) | 82 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 26.8 Degrees |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.071
