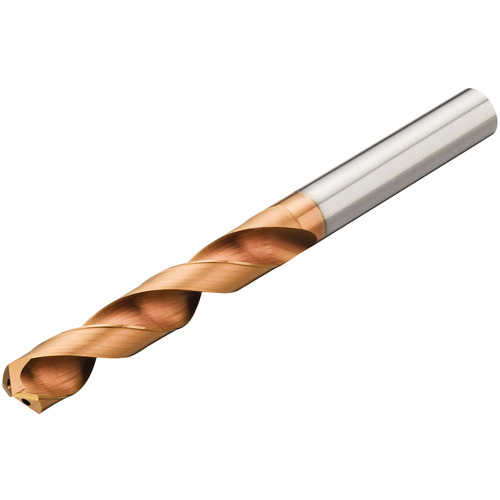

R840119050A1A 1220 S.C.
SC Drill; 11.9 mm Dia. × 12 mm Shank Dia. × 118 mm OAL × 71 mm LCF ; 140 Degrees ; 5xD
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 11.9 mm | Shank Type | Round |
| Decimal Equivalent | 0.4685″ | Shank Standard | DIN 6537 L |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.9 mm | Shape | Solid Carbide |
| Length Group | 5xD | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Internal | Usable Length (LU) | 56.7 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 71 mm |
| Flute Helix Angle (FHA) | 32 Degrees | Overall Length (OAL) | 118 mm |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.331
