15B8E-06011S6R01

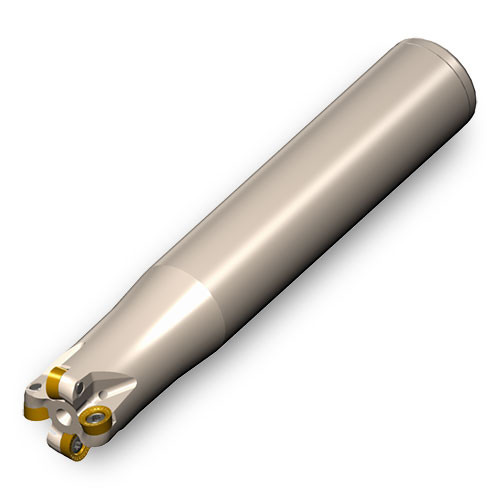

Indexable End Mill; 5/8″ Dia. × 0.157″ LOC × 0.062″ Shank Dia. × 4″ OAL × 1.13″ LU
| Cutting Diameter (DC/DCX) | 5/8″ | Usable Length (LU) | 1.13″ |
| Cutting Diameter (DC) | 0.32″ | Corner Radius (RE) | 0.158″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.157″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 3.5 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | | Protruding Length (LPR) | 1.16″ |
| Connection Diameter Machine Side (DCONMS) | 0.062″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 5/8″ |
Product Features
| Family Description | Reliable performance, strength & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.001
