MTP 90200R8 2.0000 EM

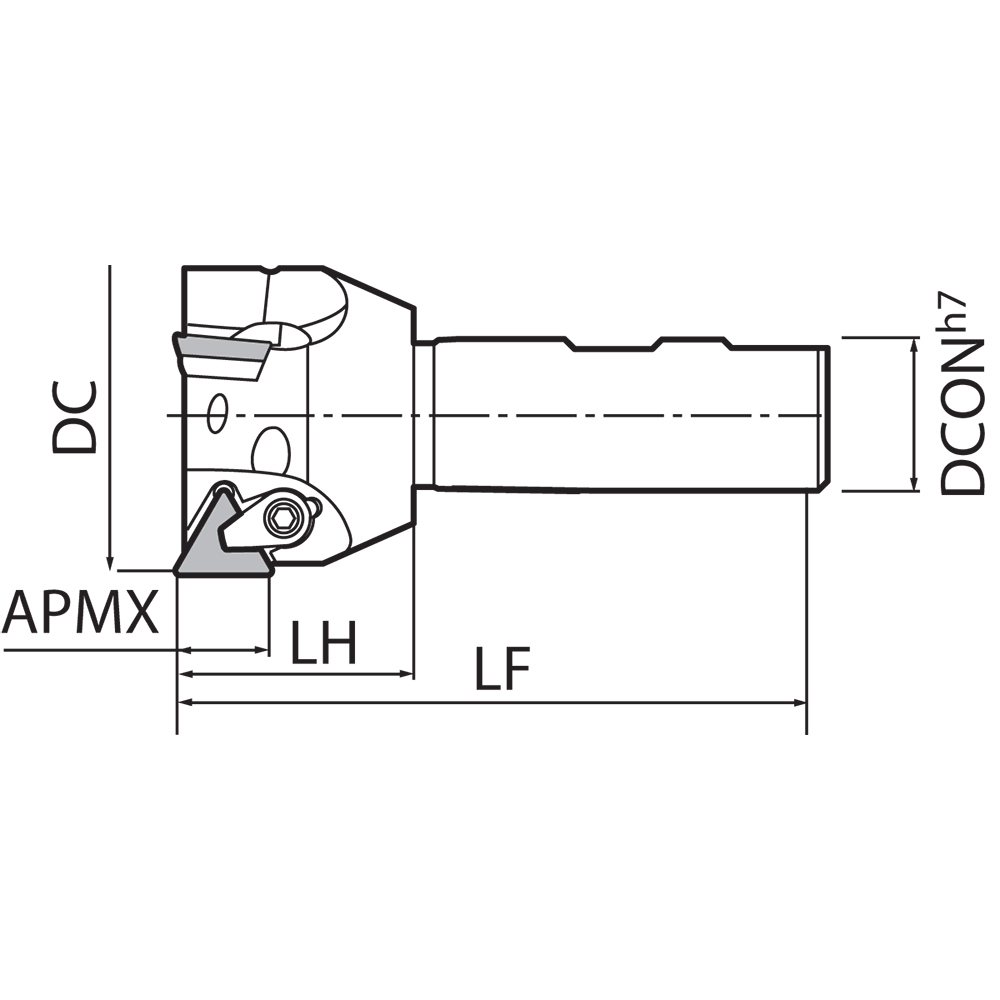

Indexable End Mill; 2-1/2″ Dia. × 1-1/4″ Shank Dia. × 3.9″ OAL × 0.71″ LU ; 3 FL ; Weldon Shank ; Series MTP
| Cutting Diameter (DC/DCX) | 2-1/2″ | Tool Type | End Mill |
| Cutting Diameter (DC) | 2-1/2″ | Usable Length (LU) | 0.71″ |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 3.9″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Style | MTP |
| Application | Facing | Shouldering | Slotting | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Angle | 90 Degrees |
| Master Insert Identification (MIID) | TPMR43PDER-H | TPKN43PDTR | TPKN43PDFR | Series/List # | MTP |
| Head Length (LH) | 1.69″ | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # MTP90250125W | Country of Origin | USA |
Shipping Info
Package Weight
1.7000
