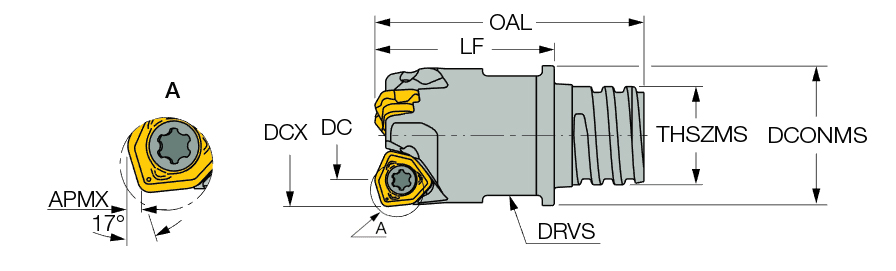

FFT3 EFMD10/.39-2MMT06-03
Indexable End Mill; 10 mm Dia. × 0.6 mm LOC × 9.7 mm Shank Dia. × 16.3 mm OAL ; 17 Degrees
| Cutting Diameter (DC/DCX) | 10 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Cutting Diameter (DC) | 5.6 mm | Drive Size (DRVS) | 8 mm |
| Cutting Item Count (CICT) | 2 | Torque (TQ) | 0.5 Nxm |
| Depth of Cut Maximum (APMX) | 0.6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 16.3 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 6.9 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9.7 mm | Body Material | Steel |
| Master Insert Identification (MIID) | FFT3 WXMT 030206T | Connection Code Machine Side (CCMS) | MultiMaster |
| Weight of Item (WT) | 0.02 kg | Cutting Diameter Maximum (DCX) | 10 mm |
| Functional Length (LF) | 10 mm |
Product Features
| Family Description | Endmills with a MULTI-MASTER threaded adaptation carrying single-sided small trigon inserts for fast feed milling. | Country of Origin | Israel |
| Remarks | Radius for programming 1.1 mm To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
0.132
