1000275AL 1.0000 EM

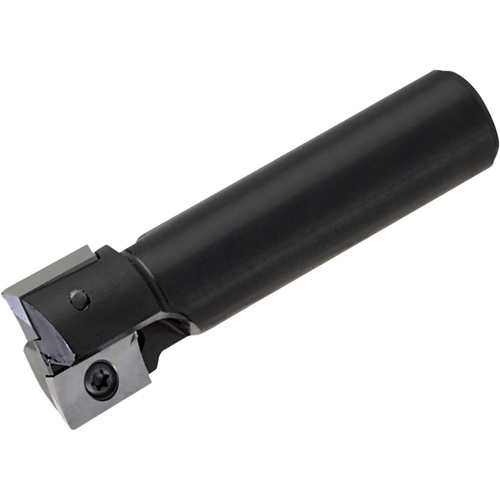

Indexable End Mill; 1″ Dia. × 3/4″ Shank Dia. × 4.78″ OAL × 0.64″ LU ; 2 FL ; Weldon Shank ; Series EM-AL

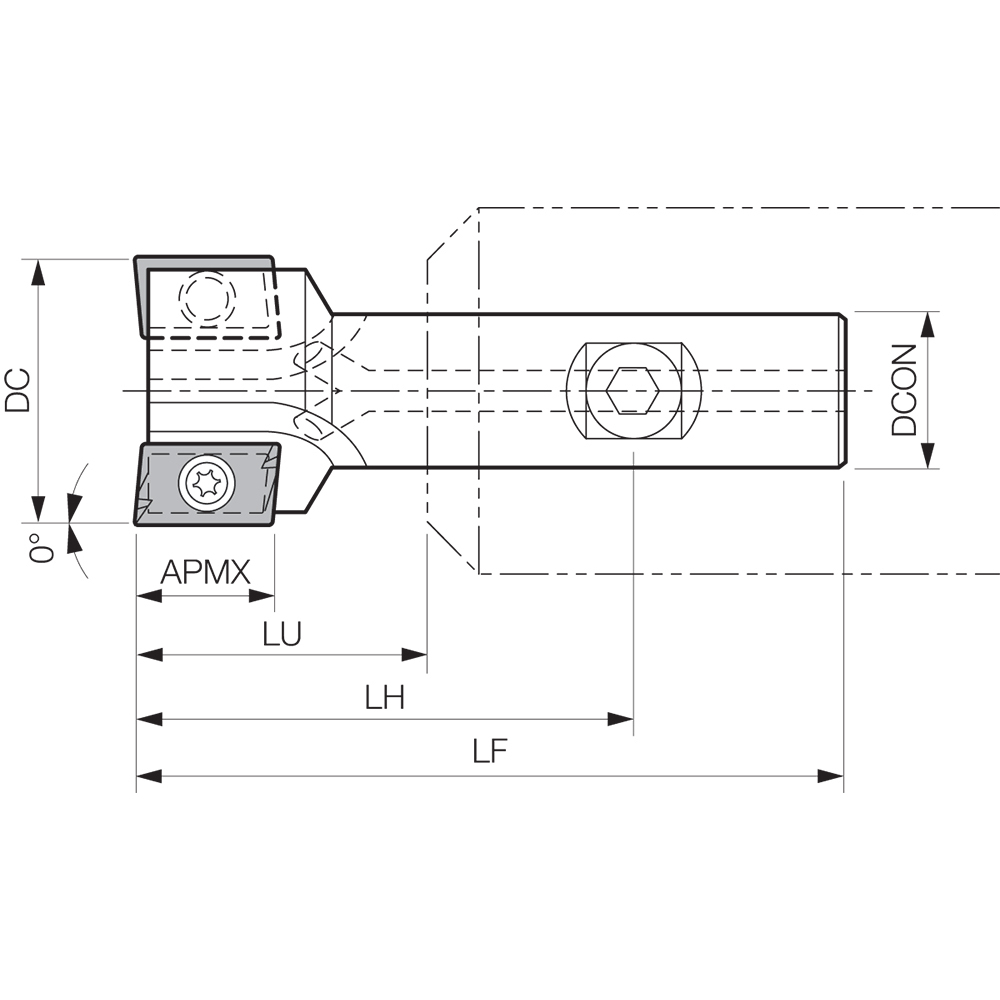

| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 2-3/4″ |
| Cutting Diameter (DC) | 1″ | Tool Type | End Mill |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 0.64″ |
| Overall Length (OAL) | 4.78″ | Flute Count (NOF) | 2 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 8 Degrees | Style | EM |
| Application | Facing | Shouldering | Slotting of Aluminum | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Angle | 90 Degrees |
| Master Insert Identification (MIID) | APET1604PDFR | APET160416 | APET160431 | Series/List # | EM-AL |
| Head Length (LH) | 3.78″ | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # EM1000275AL | Country of Origin | USA |
Shipping Info
Package Weight
1.2000
