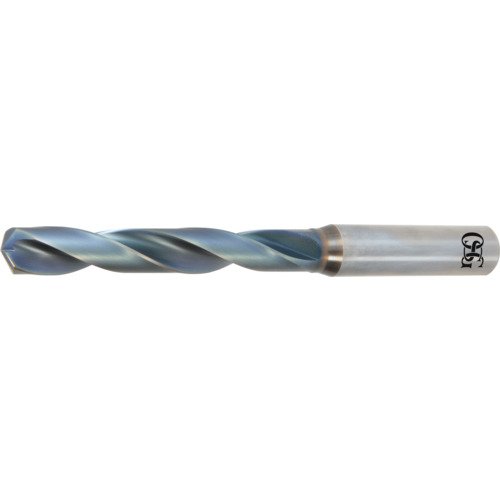

3/16 HY-PRO 5XD CARBIDE
SC Drill; 3/16″ Dia. × 6 mm Shank Dia. × 82 mm OAL × 44 mm LCF ; 140 Degrees ; 5xD ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1875″ | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP245 |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 44 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 44 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 82 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 44 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •High Performance Carbide Drill •OSG's WD1 Coating •5xD Length •Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels and Hardened Steels up to 35 HrC | Country of Origin | India |
Shipping Info
Package Length
3.15000
Package Width
.40000
Package Height
.35000
Package Weight
0.045
