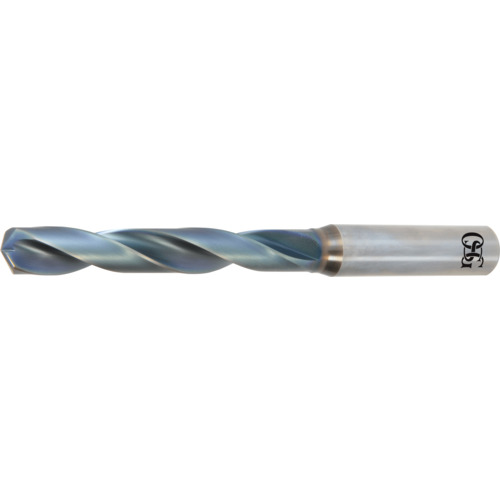

3/4″ Dia. × 20 mm Shank × 101 mm Flute Length × 153 mm OAL, 5xD, 140°, TiAlN, 2 Flute, External Coolant, Round Solid Carbide Drill
SC Drill; 3/4″ Dia. × 20 mm Shank Dia. × 153 mm OAL × 101 mm LCF ; 140 Degrees ; 5xD ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | 3/4″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/4″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.75″ | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP245 |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 101 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Length Chip Flute (LCF) | 101 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 153 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 101 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •High Performance Carbide Drill •OSG's WD1 Coating •5xD Length •Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels and Hardened Steels up to 35 HrC | Country of Origin | India |
Shipping Info
Package Length
6.10000
Package Width
1.10000
Package Height
1.00000
Package Weight
1.09
