MFH-RAPTOR MINI 20.00MM
Indexable End Mill; 20 mm Dia. × 20 mm Shank Dia. × 160 mm OAL ; 3 FL ; Round Shank ; Series MFH-RAPTOR Mini

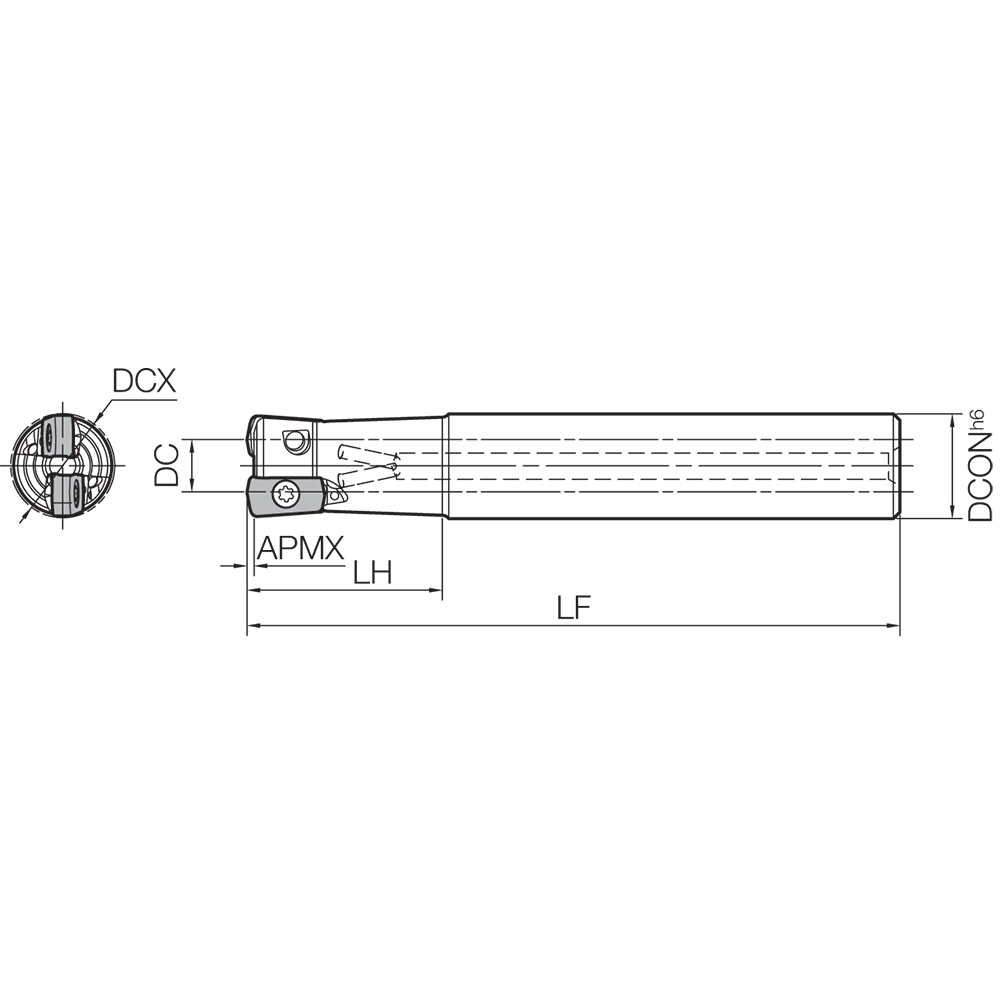

| Cutting Diameter (DC/DCX) | 20 mm | Head Length (LH) | 80 mm |
| Cutting Diameter (DC) | 20 mm | Tool Type | High Feed End Mill |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 160 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Style | MFH |
| Ramping Angle Maximum (RMPX) | 1.7 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping | Helical Milling | Plunging | Angle | 10 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Series/List # | MFH-RAPTOR Mini |
| Master Insert Identification (MIID) | LOGU030310ER-GM | Measurement Type | Metric |
Product Features
| Family Description | Alternate Manufacture # MFH20S20033T160 | Country of Origin | S.Korea |
Shipping Info
Package Weight
.8779
