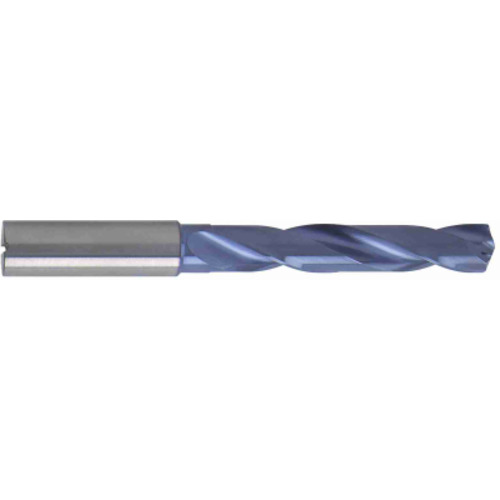

1/8″ Dia. × 6 mm Shank × 28 mm Flute Length × 66 mm OAL, 5xD, 140°, 5xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 1/8″ Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 5xD ; Series 5744
Additional Tariff Surcharge of 6.6 %
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.125″ | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | 5744 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 66 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 5 |
| Shank Type | Round |
Product Features
| Family Description | 9057440031700 1/8 CBD HP 5XD DRILL | Country of Origin | Germany |
Shipping Info
Package Weight
0.098
