MFH-RAPTOR 40.00MM EM
Indexable End Mill; 40 mm Dia. × 3.5 mm LOC × 32 mm Shank Dia. × 250 mm OAL ; 4 FL ; Round Shank ; Series MFH-RAPTOR

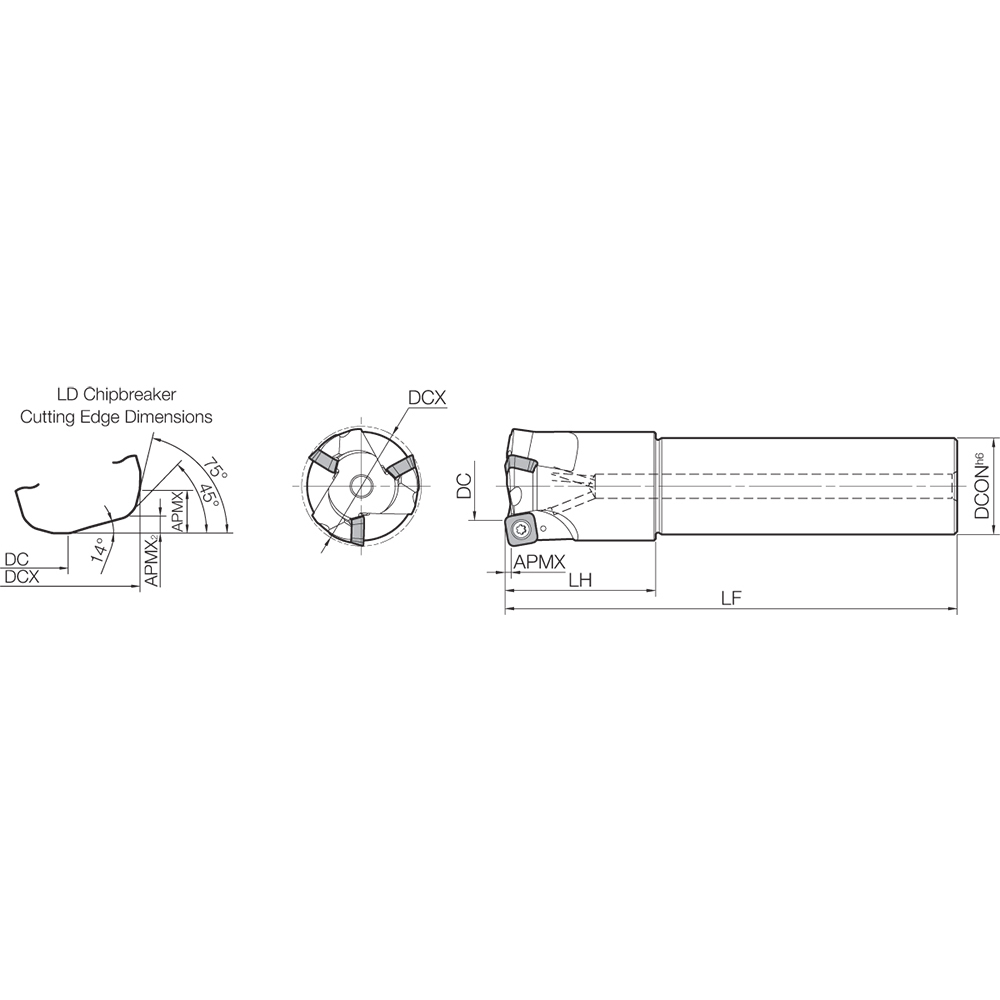

| Cutting Diameter (DC/DCX) | 40 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 40 mm | Tool Type | High Feed End Mill |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 3.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 250 mm | Style | MFH |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Angle | 10 Degrees |
| Application | Facing | Shouldering | Slotting | Ramping | Helical Milling | Plunging | Series/List # | MFH-RAPTOR |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | SOMT100420ER-GM | SOMT100420ER-LD | SOMT100420ER-FL |
Product Features
| Family Description | Alternate Manufacture # MFH40S32104T250 | Country of Origin | Japan |
Shipping Info
Package Weight
3.6156
