SCD 148-063-160 AG5 IC908

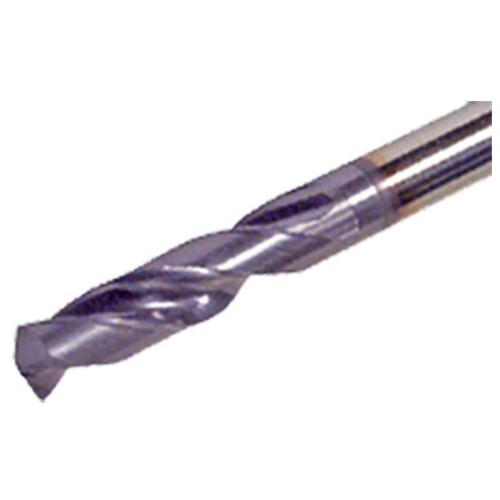

SC Drill; 14.8 mm Dia. × 14.8 mm Shank Dia. × 133 mm OAL × 133 mm LCF ; 118 Degrees ; 5xD ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 14.8 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5827″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.8 mm | Grade | 5531004 |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Usable Length (LU) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 14.8 mm | Length Chip Flute (LCF) | 133 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 133 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill | Body Material | Carbide |
Product Features
| Family Description | Solid carbide drills without coolant holes. Drilling depth 5xD (DIN 6537). | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.597
