SCD 0687-362-0687ACP5 IC908

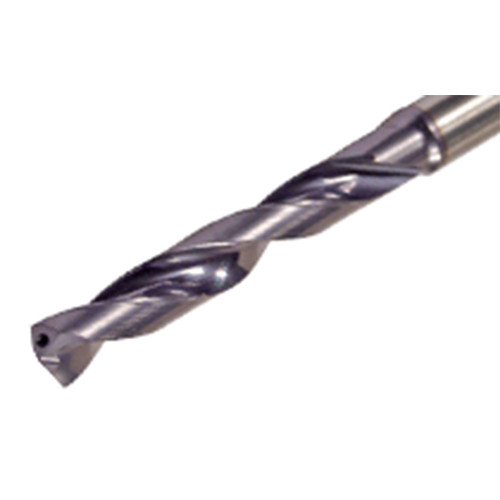

SC Drill; 0.687″ Dia. × 0.687″ Shank Dia. × 5.63″ OAL × 3.62″ LCF ; 5xD ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 0.687″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.687″ | Tool Type | solid carbide Drills |
| Length Group | 5xD | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 2.87″ |
| Connection Diameter Machine Side (DCONMS) | 0.687″ | Length Chip Flute (LCF) | 3.62″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 5.63″ |
| Point Length (PL) | 1/8″ | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 1.91″ | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills with coolant holes. Drilling depth 5xD. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.761
