MFH-RAPTOR 25.00MM EM
Indexable End Mill; 25 mm Dia. × 3.5 mm LOC × 25 mm Shank Dia. × 200 mm OAL ; 2 FL ; Round Shank ; Series MFH-RAPTOR

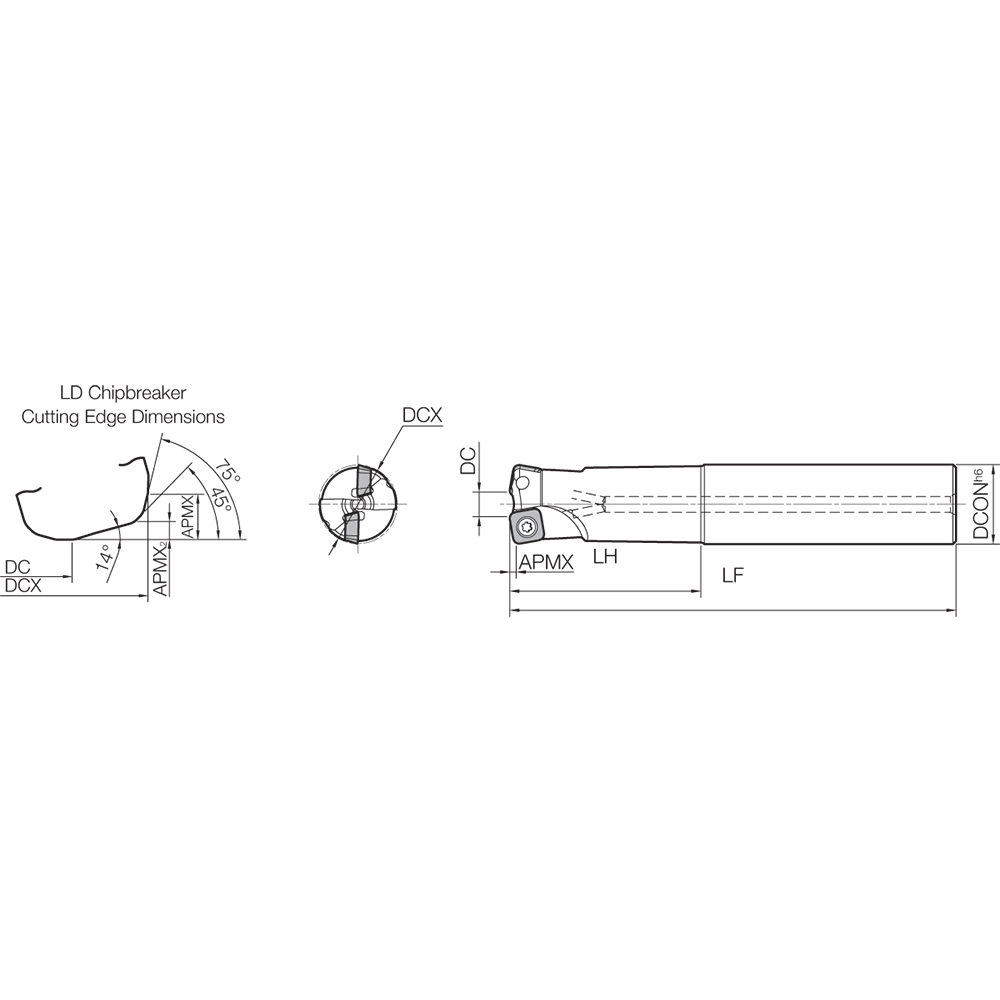

| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 120 mm |
| Cutting Diameter (DC) | 25 mm | Tool Type | High Feed End Mill |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 3.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 200 mm | Style | MFH |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Angle | 10 Degrees |
| Application | Facing | Shouldering | Slotting | Ramping | Helical Milling | Plunging | Series/List # | MFH-RAPTOR |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | SOMT100420ER-GM | SOMT100420ER-LD | SOMT100420ER-FL |
Product Features
| Family Description | Alternate Manufacture # MFH25S25102T200 | Country of Origin | Japan |
Shipping Info
Package Weight
1.7139
