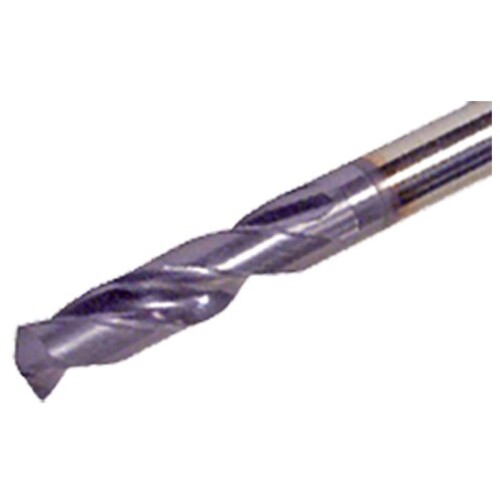

SCD 0562-197-0562ACP3 IC908
Solid Carbide Drill; 0.562″ Dia. × 0.562″ Shank Dia. × 3.86″ OAL × 1.97″ LCF ; 3xD ; 2 FL ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 0.562″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.562″ | Shape | Jobber Drill |
| Decimal Equivalent | 0.562″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Tool Type | solid carbide Drills |
| Length Group | 3D | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 1.35″ |
| Connection Diameter Machine Side (DCONMS) | 0.562″ | Length Chip Flute (LCF) | 1.97″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 3.86″ |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 1.79″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Solid carbide drills with coolant holes. Drilling depth 3xD. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.423
