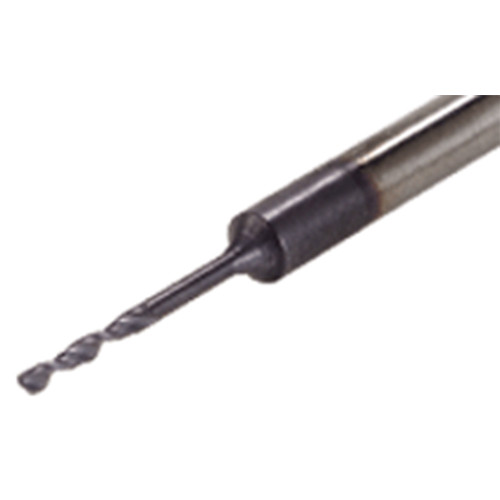

SCD 024-009-030 AP4 IC908

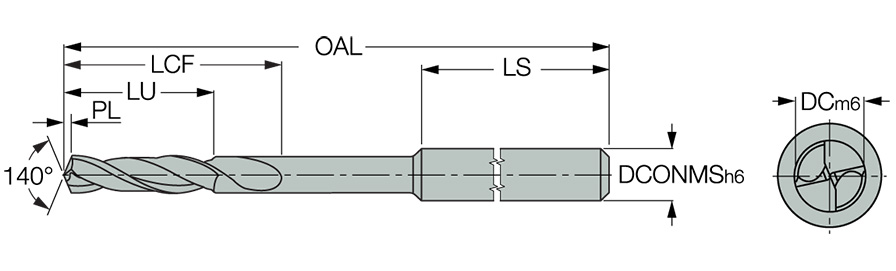

SC Drill; 2.4 mm Dia. × 3 mm Shank Dia. × 60 mm OAL × 14.4 mm LCF ; 4xD ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 2.4 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.4 mm | Tool Type | solid carbide Drills |
| Length Group | 4xD | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 9.6 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Length Chip Flute (LCF) | 14.4 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 60 mm |
| Point Length (PL) | 0.44 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 41.6 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | DIN 6537 solid carbide drills without coolant holes, drilling depth 4xD | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.026
