SCCD 046-029-060 AP5 IC908
| Drill Bit Size / Cutting Diameter (DC) | 4.6 mm | Shank Type | Round |
| Decimal Equivalent | 0.1811″ | Shape | Jobber Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.6 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Grade | IC908 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Measurement Type | Metric |
| Application | Drilling | Series/List # | 2464 |

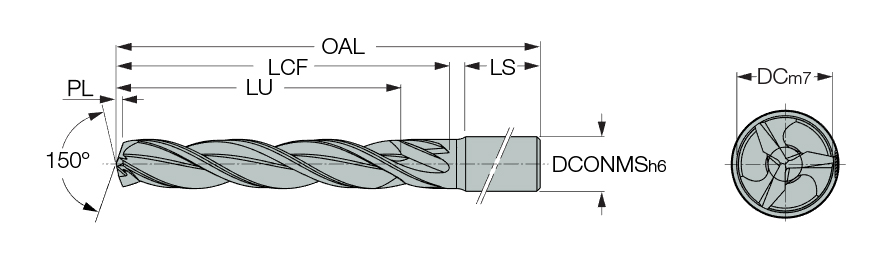

| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 29 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 36 mm |
| Point Angle (SIG) | 150 Degrees | Overall Length (OAL) | 74 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
| Number of Teeth | 3 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 34 mm | Body Material | Carbide |
Product Features
| Family Description | DIN 6537 three flute solid carbide drills without coolant holes, drilling depth 5xD | Country of Origin | Israel |
Shipping Info
Package Weight
0.043
