15B8E-06090X5R01

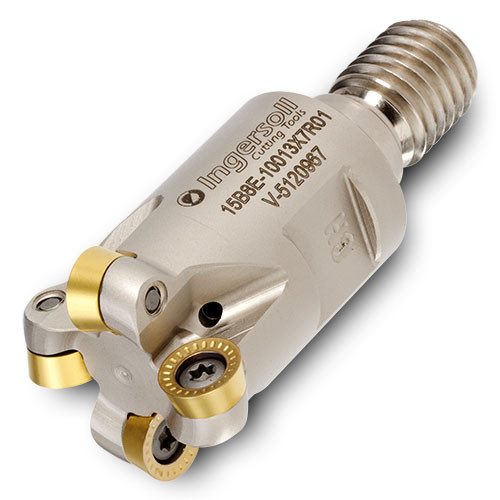

Indexable End Mill; 5/8″ Dia. × 0.157″ LOC
| Cutting Diameter (DC/DCX) | 5/8″ | Corner Radius (RE) | 0.158″ |
| Cutting Diameter (DC) | 0.32″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.157″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Hub Diameter (DHUB) | 0.502″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 0.906″ | Cutting Diameter Maximum (DCX) | 5/8″ |
Product Features
| Family Description | Reliable performance, strength & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.000
