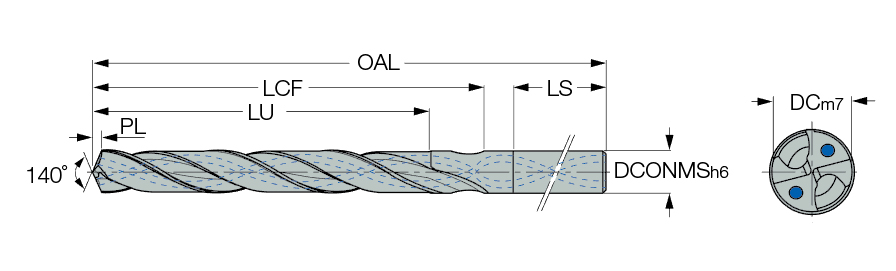

SCD 074-064-080 ACG8 IC908
| Drill Bit Size / Cutting Diameter (DC) | 7.4 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2913″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.4 mm | Grade | IC908 |
| Length Group | 8xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Usable Length (LU) | 64 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 76 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 114 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Solid Carbide |
Product Features
| Family Description | DIN 6537 solid carbide drills with coolant holes, drilling depth 8xD. | Country of Origin | IL |
Shipping Info
Package Weight
.0180
