SCD 176-071-180 AP5 IC908

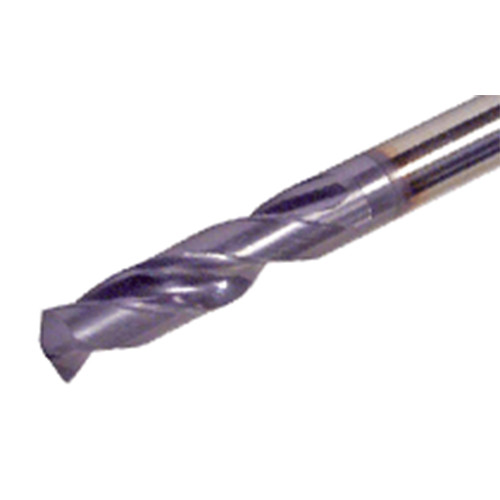

SC Drill; 17.6 mm Dia. × 18 mm Shank Dia. × 143 mm OAL × 93 mm LCF ; 5xD ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 17.6 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.6 mm | Tool Type | solid carbide Drills |
| Length Group | 5xD | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 71 mm |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Length Chip Flute (LCF) | 93 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 143 mm |
| Point Length (PL) | 3.2 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 48 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide drills without coolant holes. Drilling depth 5xD | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.93
