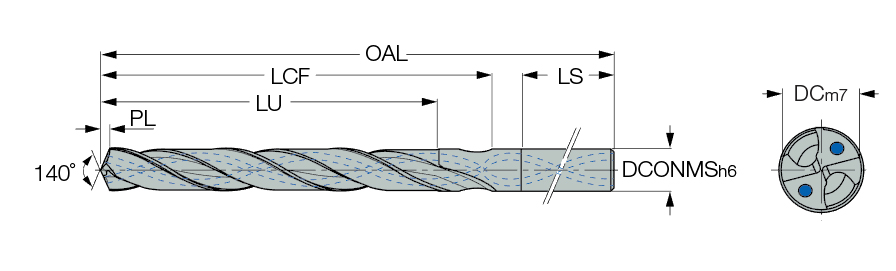

SCD 082-080-100 ACP8 IC908
| Drill Bit Size / Cutting Diameter (DC) | 8.2 mm | Shank Type | Round |
| Decimal Equivalent | 0.3228″ | Shape | Jobber Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.2 mm | Cutting Edge Material | Carbide |
| Length Group | 8xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Grade | IC908 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Measurement Type | Metric |
| Application | Drilling | Series/List # | 2464 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 80 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 95 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 142 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 38 mm | Body Material | Carbide |
Product Features
| Family Description | Solid carbide drills with coolant holes. Drilling depth 8xD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.207
