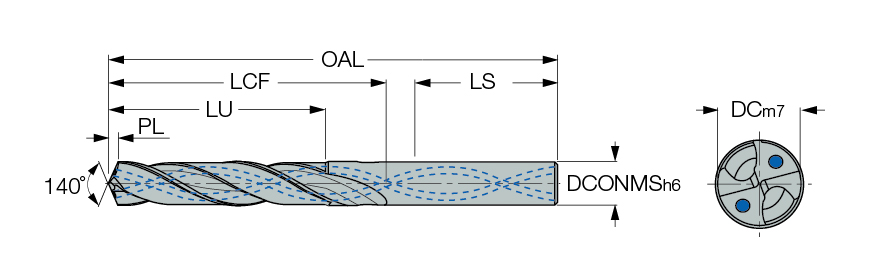

SCD 046-029-060 ACG5 IC908
| Drill Bit Size / Cutting Diameter (DC) | 4.6 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1811″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Grade | IC908 |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi-Temp Alloys | | Usable Length (LU) | 29 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 36 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 74 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Jobber Drill |
Product Features
| Family Description | Solid carbide drills with coolant holes. Drilling depth 5xD (DIN 6537). | Country of Origin | IL |
Shipping Info
Package Weight
0.0440
