SCD 060-120-060ACP-CS IC908

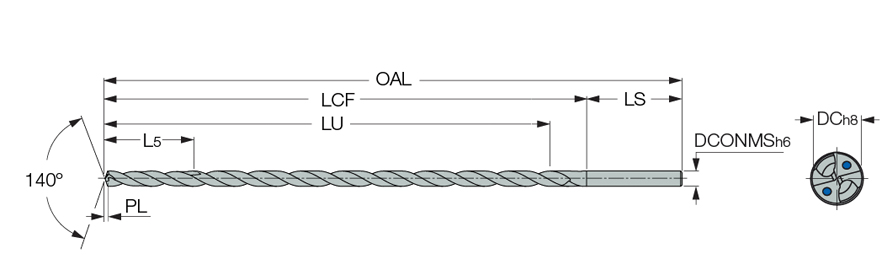

SC Drill; 6 mm Dia. × 6 mm Shank Dia. × 178 mm OAL × 140 mm LCF ; 118 Degrees ; 20D ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Shape | Jobber Drill |
| Decimal Equivalent | 0.2638″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Tool Type | solid carbide Drills |
| Length Group | 20D | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 120 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 140 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 178 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 38 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide drills with coolant holes for automotive crankshaft applications, drilling depth 20-22xD | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.113
